A new method of growing graphene nanoribbons has been developed graphene electronic

Graphene was initial found experimentally in 2004, bringing want to the development of high-performance digital devices. Graphene is a two-dimensional crystal made up of a single layer of carbon atoms prepared in a honeycomb shape. It has a special digital band framework and exceptional electronic buildings. The electrons in graphene are massless Dirac fermions, which can shuttle bus at incredibly quick speeds. The carrier movement of graphene can be greater than 100 times that of silicon. “Carbon-based nanoelectronics” based on graphene is expected to usher in a brand-new period of human info society.

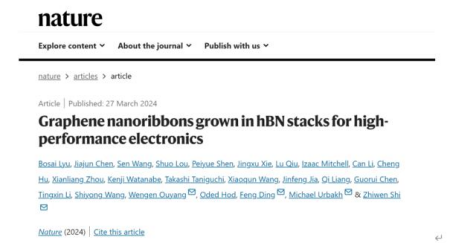

(Graphene nanoribbons grown in hBN stacks for high-performance electronics on “Nature”)

However, two-dimensional graphene has no band space and can not be straight made use of to make transistor devices.

Academic physicists have recommended that band gaps can be presented via quantum arrest effects by reducing two-dimensional graphene right into quasi-one-dimensional nanostrips. The band space of graphene nanoribbons is inversely proportional to its width. Graphene nanoribbons with a size of much less than 5 nanometers have a band gap equivalent to silicon and appropriate for making transistors. This type of graphene nanoribbon with both band gap and ultra-high flexibility is one of the optimal candidates for carbon-based nanoelectronics.

Therefore, clinical scientists have spent a lot of energy in studying the prep work of graphene nanoribbons. Although a variety of methods for preparing graphene nanoribbons have actually been established, the problem of preparing premium graphene nanoribbons that can be used in semiconductor tools has yet to be solved. The service provider movement of the ready graphene nanoribbons is much lower than the academic worths. On the one hand, this difference comes from the low quality of the graphene nanoribbons themselves; on the other hand, it comes from the problem of the atmosphere around the nanoribbons. Due to the low-dimensional properties of the graphene nanoribbons, all its electrons are revealed to the outside atmosphere. Thus, the electron’s movement is exceptionally easily impacted by the surrounding setting.

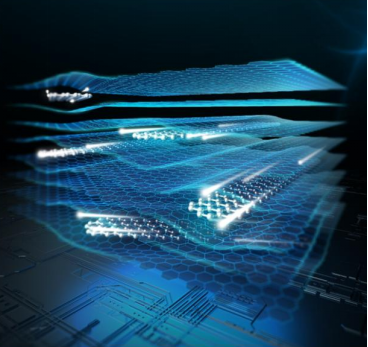

(Concept diagram of carbon-based chip based on encapsulated graphene nanoribbons)

In order to improve the efficiency of graphene tools, numerous methods have been attempted to minimize the problem effects caused by the environment. The most successful method to day is the hexagonal boron nitride (hBN, hereafter described as boron nitride) encapsulation technique. Boron nitride is a wide-bandgap two-dimensional layered insulator with a honeycomb-like hexagonal lattice-like graphene. More importantly, boron nitride has an atomically level surface area and outstanding chemical security. If graphene is sandwiched (enveloped) between 2 layers of boron nitride crystals to create a sandwich framework, the graphene “sandwich” will be separated from “water, oxygen, and microorganisms” in the complicated external environment, making the “sandwich” Constantly in the “best and best” problem. Multiple research studies have shown that after graphene is enveloped with boron nitride, several residential or commercial properties, including carrier wheelchair, will certainly be considerably improved. Nevertheless, the existing mechanical product packaging techniques can be much more reliable. They can presently only be used in the field of scientific research study, making it tough to meet the requirements of massive manufacturing in the future advanced microelectronics market.

In feedback to the above difficulties, the group of Teacher Shi Zhiwen of Shanghai Jiao Tong College took a new technique. It established a new preparation technique to accomplish the embedded development of graphene nanoribbons between boron nitride layers, forming a special “in-situ encapsulation” semiconductor property. Graphene nanoribbons.

The growth of interlayer graphene nanoribbons is attained by nanoparticle-catalyzed chemical vapor deposition (CVD). “In 2022, we reported ultra-long graphene nanoribbons with nanoribbon sizes up to 10 microns expanded on the surface of boron nitride, yet the size of interlayer nanoribbons has much surpassed this document. Now limiting graphene nanoribbons The upper limit of the size is no more the development device but the size of the boron nitride crystal.” Dr. Lu Bosai, the initial writer of the paper, said that the length of graphene nanoribbons grown in between layers can reach the sub-millimeter degree, much exceeding what has been formerly reported. Result.


“This kind of interlayer embedded growth is impressive.” Shi Zhiwen stated that product development usually entails growing one more on the surface of one base material, while the nanoribbons prepared by his study team grow directly externally of hexagonal nitride between boron atoms.

The abovementioned joint study team worked carefully to expose the development mechanism and found that the formation of ultra-long zigzag nanoribbons in between layers is the outcome of the super-lubricating buildings (near-zero rubbing loss) between boron nitride layers.

Experimental monitorings show that the development of graphene nanoribbons only occurs at the bits of the stimulant, and the position of the catalyst stays the same throughout the process. This shows that completion of the nanoribbon exerts a pushing force on the graphene nanoribbon, creating the entire nanoribbon to conquer the friction in between it and the bordering boron nitride and continuously slide, causing the head end to relocate away from the driver bits gradually. Therefore, the scientists guess that the friction the graphene nanoribbons experience have to be very small as they slide between layers of boron nitride atoms.

Considering that the produced graphene nanoribbons are “enveloped sitting” by protecting boron nitride and are safeguarded from adsorption, oxidation, ecological air pollution, and photoresist contact during device processing, ultra-high efficiency nanoribbon electronics can theoretically be gotten tool. The researchers prepared field-effect transistor (FET) tools based upon interlayer-grown nanoribbons. The measurement results revealed that graphene nanoribbon FETs all exhibited the electric transport characteristics of normal semiconductor gadgets. What is even more noteworthy is that the tool has a provider mobility of 4,600 cm2V– 1s– 1, which surpasses previously reported outcomes.

These impressive residential or commercial properties suggest that interlayer graphene nanoribbons are anticipated to play an essential function in future high-performance carbon-based nanoelectronic devices. The research study takes a vital action towards the atomic construction of sophisticated packaging designs in microelectronics and is anticipated to affect the area of carbon-based nanoelectronics substantially.
