Alumina Ceramics: Bridging the Gap Between Structural Integrity and Functional Versatility in Modern Engineering an electrical insulator alumina
1. The Product Structure and Crystallographic Identity of Alumina Ceramics
1.1 Atomic Design and Stage Stability

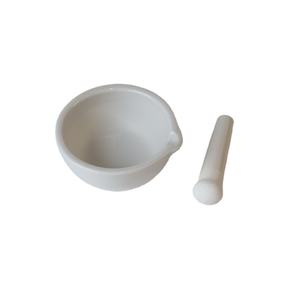

(Alumina Ceramics)
Alumina porcelains, mainly composed of light weight aluminum oxide (Al ₂ O FIVE), represent one of the most commonly used classes of advanced ceramics as a result of their exceptional balance of mechanical stamina, thermal durability, and chemical inertness.
At the atomic level, the performance of alumina is rooted in its crystalline framework, with the thermodynamically secure alpha stage (α-Al two O TWO) being the dominant form used in engineering applications.
This stage embraces a rhombohedral crystal system within the hexagonal close-packed (HCP) lattice, where oxygen anions develop a dense setup and aluminum cations inhabit two-thirds of the octahedral interstitial sites.
The resulting structure is highly secure, contributing to alumina’s high melting point of approximately 2072 ° C and its resistance to decay under severe thermal and chemical problems.
While transitional alumina stages such as gamma (γ), delta (δ), and theta (θ) exist at lower temperature levels and exhibit greater surface areas, they are metastable and irreversibly transform into the alpha stage upon home heating above 1100 ° C, making α-Al two O ₃ the special stage for high-performance structural and practical elements.
1.2 Compositional Grading and Microstructural Design
The residential properties of alumina porcelains are not dealt with yet can be tailored via regulated variations in purity, grain dimension, and the addition of sintering aids.
High-purity alumina (≥ 99.5% Al Two O THREE) is employed in applications requiring maximum mechanical toughness, electric insulation, and resistance to ion diffusion, such as in semiconductor handling and high-voltage insulators.
Lower-purity qualities (varying from 85% to 99% Al Two O SIX) typically incorporate second phases like mullite (3Al ₂ O FIVE · 2SiO TWO) or lustrous silicates, which boost sinterability and thermal shock resistance at the cost of firmness and dielectric efficiency.
A crucial factor in efficiency optimization is grain size control; fine-grained microstructures, attained with the addition of magnesium oxide (MgO) as a grain growth inhibitor, considerably improve crack durability and flexural toughness by restricting crack propagation.
Porosity, also at reduced degrees, has a detrimental impact on mechanical stability, and totally dense alumina porcelains are generally generated through pressure-assisted sintering methods such as warm pressing or hot isostatic pushing (HIP).
The interaction in between composition, microstructure, and handling defines the functional envelope within which alumina porcelains operate, enabling their use throughout a substantial range of commercial and technological domain names.

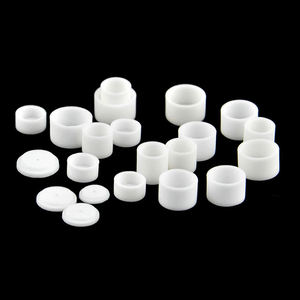

( Alumina Ceramics)
2. Mechanical and Thermal Performance in Demanding Environments
2.1 Strength, Firmness, and Put On Resistance
Alumina ceramics show a distinct combination of high solidity and modest fracture strength, making them optimal for applications including unpleasant wear, erosion, and influence.
With a Vickers firmness usually varying from 15 to 20 Grade point average, alumina ranks among the hardest design materials, surpassed only by diamond, cubic boron nitride, and certain carbides.
This severe firmness translates right into outstanding resistance to scraping, grinding, and particle impingement, which is made use of in elements such as sandblasting nozzles, reducing tools, pump seals, and wear-resistant liners.
Flexural strength worths for dense alumina variety from 300 to 500 MPa, depending upon pureness and microstructure, while compressive strength can go beyond 2 GPa, allowing alumina parts to endure high mechanical lots without contortion.
Despite its brittleness– a common attribute amongst ceramics– alumina’s performance can be enhanced through geometric design, stress-relief attributes, and composite support approaches, such as the consolidation of zirconia bits to generate improvement toughening.
2.2 Thermal Behavior and Dimensional Stability
The thermal buildings of alumina porcelains are central to their use in high-temperature and thermally cycled settings.
With a thermal conductivity of 20– 30 W/m · K– greater than a lot of polymers and equivalent to some steels– alumina successfully dissipates warm, making it suitable for warm sinks, protecting substratums, and furnace components.
Its low coefficient of thermal growth (~ 8 × 10 ⁻⁶/ K) guarantees marginal dimensional modification throughout cooling and heating, reducing the threat of thermal shock breaking.
This stability is particularly beneficial in applications such as thermocouple defense tubes, ignition system insulators, and semiconductor wafer taking care of systems, where specific dimensional control is essential.
Alumina keeps its mechanical stability up to temperature levels of 1600– 1700 ° C in air, past which creep and grain limit moving might launch, depending on purity and microstructure.
In vacuum or inert ambiences, its efficiency extends even additionally, making it a preferred material for space-based instrumentation and high-energy physics experiments.
3. Electric and Dielectric Characteristics for Advanced Technologies
3.1 Insulation and High-Voltage Applications
Among one of the most significant useful features of alumina porcelains is their superior electric insulation capacity.
With a quantity resistivity going beyond 10 ¹⁴ Ω · centimeters at area temperature level and a dielectric stamina of 10– 15 kV/mm, alumina works as a trusted insulator in high-voltage systems, including power transmission tools, switchgear, and digital product packaging.
Its dielectric continuous (εᵣ ≈ 9– 10 at 1 MHz) is reasonably stable throughout a vast frequency variety, making it appropriate for use in capacitors, RF parts, and microwave substratums.
Low dielectric loss (tan δ < 0.0005) makes sure very little energy dissipation in rotating present (AIR CONDITIONER) applications, enhancing system effectiveness and decreasing heat generation.
In printed motherboard (PCBs) and crossbreed microelectronics, alumina substratums offer mechanical support and electric seclusion for conductive traces, making it possible for high-density circuit assimilation in rough environments.
3.2 Performance in Extreme and Delicate Atmospheres
Alumina ceramics are distinctly suited for usage in vacuum cleaner, cryogenic, and radiation-intensive atmospheres due to their reduced outgassing prices and resistance to ionizing radiation.
In bit accelerators and blend reactors, alumina insulators are utilized to isolate high-voltage electrodes and analysis sensing units without introducing contaminants or weakening under extended radiation direct exposure.
Their non-magnetic nature also makes them optimal for applications including solid magnetic fields, such as magnetic resonance imaging (MRI) systems and superconducting magnets.
Additionally, alumina’s biocompatibility and chemical inertness have caused its adoption in medical devices, including oral implants and orthopedic components, where lasting stability and non-reactivity are paramount.
4. Industrial, Technological, and Arising Applications
4.1 Role in Industrial Equipment and Chemical Handling
Alumina ceramics are thoroughly made use of in commercial devices where resistance to put on, deterioration, and heats is important.
Parts such as pump seals, valve seats, nozzles, and grinding media are commonly made from alumina as a result of its capability to stand up to abrasive slurries, aggressive chemicals, and elevated temperature levels.
In chemical handling plants, alumina cellular linings safeguard activators and pipes from acid and antacid assault, extending equipment life and lowering upkeep expenses.
Its inertness likewise makes it ideal for use in semiconductor manufacture, where contamination control is important; alumina chambers and wafer boats are exposed to plasma etching and high-purity gas atmospheres without seeping contaminations.
4.2 Integration right into Advanced Manufacturing and Future Technologies
Past conventional applications, alumina ceramics are playing a significantly crucial role in emerging modern technologies.
In additive manufacturing, alumina powders are used in binder jetting and stereolithography (RUN-DOWN NEIGHBORHOOD) processes to fabricate facility, high-temperature-resistant parts for aerospace and energy systems.
Nanostructured alumina movies are being discovered for catalytic supports, sensing units, and anti-reflective layers as a result of their high surface area and tunable surface chemistry.
In addition, alumina-based composites, such as Al ₂ O TWO-ZrO Two or Al ₂ O SIX-SiC, are being created to overcome the inherent brittleness of monolithic alumina, offering improved sturdiness and thermal shock resistance for next-generation structural products.
As industries continue to press the borders of efficiency and integrity, alumina ceramics continue to be at the center of material technology, linking the void in between architectural effectiveness and practical adaptability.
In summary, alumina porcelains are not merely a course of refractory materials however a foundation of modern-day design, allowing technological progression throughout energy, electronics, healthcare, and industrial automation.
Their unique mix of properties– rooted in atomic structure and fine-tuned through advanced handling– guarantees their continued relevance in both established and emerging applications.
As material scientific research progresses, alumina will most certainly remain a vital enabler of high-performance systems running at the edge of physical and environmental extremes.
