1. Product Scientific Research and Structural Properties

1.1 Crystal Structure and Chemical Security

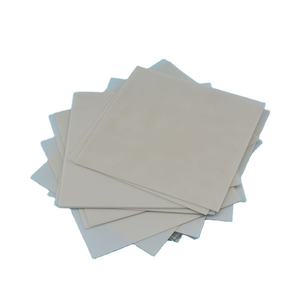

(Aluminum Nitride Ceramic Substrates)

Light weight aluminum nitride (AlN) is a large bandgap semiconductor ceramic with a hexagonal wurtzite crystal framework, composed of alternating layers of light weight aluminum and nitrogen atoms bound via solid covalent communications.

This robust atomic plan enhances AlN with remarkable thermal security, keeping architectural stability up to 2200 ° C in inert environments and resisting disintegration under severe thermal cycling.

Unlike alumina (Al two O TWO), AlN is chemically inert to thaw steels and several reactive gases, making it ideal for harsh atmospheres such as semiconductor handling chambers and high-temperature heating systems.

Its high resistance to oxidation– forming only a slim safety Al ₂ O four layer at surface upon direct exposure to air– guarantees long-term dependability without significant deterioration of bulk properties.

Furthermore, AlN displays exceptional electrical insulation with a resistivity exceeding 10 ¹⁴ Ω · cm and a dielectric stamina above 30 kV/mm, crucial for high-voltage applications.

1.2 Thermal Conductivity and Digital Attributes

One of the most defining function of light weight aluminum nitride is its exceptional thermal conductivity, usually varying from 140 to 180 W/(m · K )for commercial-grade substratums– over 5 times more than that of alumina (≈ 30 W/(m · K)).

This performance originates from the low atomic mass of nitrogen and light weight aluminum, integrated with strong bonding and very little factor flaws, which enable efficient phonon transport with the lattice.

Nonetheless, oxygen contaminations are particularly damaging; even trace amounts (above 100 ppm) substitute for nitrogen sites, producing aluminum openings and spreading phonons, thereby considerably reducing thermal conductivity.

High-purity AlN powders manufactured through carbothermal reduction or direct nitridation are essential to achieve optimum warmth dissipation.

In spite of being an electrical insulator, AlN’s piezoelectric and pyroelectric homes make it valuable in sensors and acoustic wave gadgets, while its vast bandgap (~ 6.2 eV) supports procedure in high-power and high-frequency electronic systems.

2. Manufacture Processes and Production Challenges

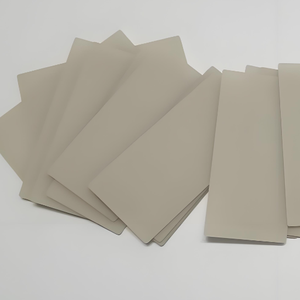

( Aluminum Nitride Ceramic Substrates)

2.1 Powder Synthesis and Sintering Techniques

Making high-performance AlN substrates starts with the synthesis of ultra-fine, high-purity powder, commonly attained via reactions such as Al Two O ₃ + 3C + N ₂ → 2AlN + 3CO (carbothermal decrease) or direct nitridation of aluminum steel: 2Al + N TWO → 2AlN.

The resulting powder needs to be very carefully milled and doped with sintering help like Y TWO O THREE, CaO, or unusual earth oxides to promote densification at temperature levels in between 1700 ° C and 1900 ° C under nitrogen atmosphere.

These additives create transient fluid phases that boost grain limit diffusion, enabling complete densification (> 99% academic thickness) while reducing oxygen contamination.

Post-sintering annealing in carbon-rich environments can better minimize oxygen content by eliminating intergranular oxides, therefore restoring peak thermal conductivity.

Accomplishing consistent microstructure with regulated grain dimension is vital to balance mechanical strength, thermal efficiency, and manufacturability.

2.2 Substratum Forming and Metallization

Once sintered, AlN porcelains are precision-ground and splashed to meet tight dimensional resistances needed for digital packaging, commonly down to micrometer-level monotony.

Through-hole drilling, laser cutting, and surface pattern enable integration into multilayer bundles and hybrid circuits.

A vital action in substrate manufacture is metallization– the application of conductive layers (typically tungsten, molybdenum, or copper) by means of processes such as thick-film printing, thin-film sputtering, or direct bonding of copper (DBC).

For DBC, copper foils are bonded to AlN surfaces at elevated temperatures in a regulated ambience, developing a strong interface appropriate for high-current applications.

Alternative methods like active metal brazing (AMB) make use of titanium-containing solders to improve bond and thermal tiredness resistance, particularly under duplicated power cycling.

Proper interfacial engineering guarantees reduced thermal resistance and high mechanical integrity in running tools.

3. Efficiency Advantages in Electronic Solution

3.1 Thermal Monitoring in Power Electronic Devices

AlN substratums excel in managing warm generated by high-power semiconductor tools such as IGBTs, MOSFETs, and RF amplifiers used in electrical cars, renewable resource inverters, and telecommunications infrastructure.

Effective heat removal stops local hotspots, decreases thermal stress and anxiety, and prolongs gadget lifetime by reducing electromigration and delamination risks.

Compared to conventional Al two O four substratums, AlN allows smaller plan dimensions and higher power densities because of its superior thermal conductivity, allowing developers to press performance limits without compromising reliability.

In LED lighting and laser diodes, where junction temperature level straight influences effectiveness and shade security, AlN substratums dramatically enhance luminous result and operational life-span.

Its coefficient of thermal development (CTE ≈ 4.5 ppm/K) additionally very closely matches that of silicon (3.5– 4 ppm/K) and gallium nitride (GaN, ~ 5.6 ppm/K), lessening thermo-mechanical anxiety during thermal cycling.

3.2 Electric and Mechanical Dependability

Beyond thermal performance, AlN provides reduced dielectric loss (tan δ < 0.0005) and steady permittivity (εᵣ ≈ 8.9) across a wide regularity array, making it optimal for high-frequency microwave and millimeter-wave circuits.

Its hermetic nature prevents dampness access, eliminating deterioration risks in moist settings– a crucial benefit over organic substratums.

Mechanically, AlN possesses high flexural strength (300– 400 MPa) and hardness (HV ≈ 1200), guaranteeing sturdiness during handling, setting up, and area procedure.

These features jointly add to improved system dependability, reduced failure prices, and lower total cost of ownership in mission-critical applications.

4. Applications and Future Technological Frontiers

4.1 Industrial, Automotive, and Protection Equipments

AlN ceramic substrates are now common in advanced power modules for industrial electric motor drives, wind and solar inverters, and onboard battery chargers in electric and hybrid cars.

In aerospace and protection, they sustain radar systems, electronic war systems, and satellite communications, where performance under extreme problems is non-negotiable.

Medical imaging devices, including X-ray generators and MRI systems, likewise benefit from AlN’s radiation resistance and signal stability.

As electrification fads speed up throughout transportation and energy sectors, demand for AlN substratums continues to expand, driven by the requirement for small, effective, and reputable power electronics.

4.2 Arising Integration and Lasting Development

Future advancements concentrate on integrating AlN into three-dimensional product packaging designs, ingrained passive parts, and heterogeneous assimilation platforms integrating Si, SiC, and GaN tools.

Study into nanostructured AlN films and single-crystal substrates aims to additional increase thermal conductivity toward theoretical limitations (> 300 W/(m · K)) for next-generation quantum and optoelectronic gadgets.

Efforts to decrease manufacturing prices via scalable powder synthesis, additive manufacturing of intricate ceramic structures, and recycling of scrap AlN are gaining energy to boost sustainability.

In addition, modeling tools utilizing finite aspect evaluation (FEA) and machine learning are being used to optimize substrate layout for details thermal and electric tons.

Finally, aluminum nitride ceramic substrates represent a keystone innovation in contemporary electronic devices, distinctly bridging the gap between electric insulation and exceptional thermal transmission.

Their role in allowing high-efficiency, high-reliability power systems underscores their critical value in the ongoing evolution of electronic and power technologies.
