Intro to Light Weight Aluminum Nitride Ceramics
Light weight aluminum nitride (AlN) is a high-performance ceramic material that has actually acquired prevalent recognition for its extraordinary thermal conductivity, electric insulation, and mechanical stability at raised temperatures. With a hexagonal wurtzite crystal structure, AlN shows a distinct mix of residential or commercial properties that make it one of the most optimal substrate material for applications in electronic devices, optoelectronics, power components, and high-temperature atmospheres. Its ability to successfully dissipate warmth while maintaining outstanding dielectric strength placements AlN as a remarkable option to traditional ceramic substratums such as alumina and beryllium oxide. This short article explores the basic characteristics of aluminum nitride ceramics, explores construction techniques, and highlights its critical functions throughout innovative technological domain names.

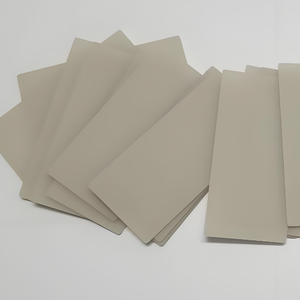

(Aluminum Nitride Ceramics)
Crystal Structure and Fundamental Feature
The efficiency of aluminum nitride as a substrate material is largely dictated by its crystalline framework and intrinsic physical buildings. AlN adopts a wurtzite-type lattice composed of rotating light weight aluminum and nitrogen atoms, which contributes to its high thermal conductivity– typically going beyond 180 W/(m · K), with some high-purity samples attaining over 320 W/(m · K). This worth dramatically goes beyond those of other extensively used ceramic products, including alumina (~ 24 W/(m · K) )and silicon carbide (~ 90 W/(m · K)).
Along with its thermal efficiency, AlN has a large bandgap of approximately 6.2 eV, resulting in outstanding electrical insulation homes even at high temperatures. It also demonstrates reduced thermal expansion (CTE ≈ 4.5 × 10 ⁻⁶/ K), which very closely matches that of silicon and gallium arsenide, making it an ideal suit for semiconductor device packaging. Moreover, AlN displays high chemical inertness and resistance to thaw metals, enhancing its viability for severe atmospheres. These consolidated qualities establish AlN as a prominent prospect for high-power electronic substratums and thermally took care of systems.
Fabrication and Sintering Technologies
Producing high-grade aluminum nitride ceramics calls for specific powder synthesis and sintering methods to attain dense microstructures with minimal impurities. As a result of its covalent bonding nature, AlN does not quickly densify via traditional pressureless sintering. Therefore, sintering help such as yttrium oxide (Y TWO O THREE), calcium oxide (CaO), or uncommon planet components are usually contributed to promote liquid-phase sintering and enhance grain limit diffusion.
The manufacture procedure generally begins with the carbothermal decrease of aluminum oxide in a nitrogen atmosphere to manufacture AlN powders. These powders are then milled, shaped by means of approaches like tape casting or shot molding, and sintered at temperature levels between 1700 ° C and 1900 ° C under a nitrogen-rich ambience. Warm pressing or stimulate plasma sintering (SPS) can even more enhance density and thermal conductivity by reducing porosity and promoting grain placement. Advanced additive production methods are likewise being explored to fabricate complex-shaped AlN parts with customized thermal monitoring abilities.
Application in Digital Product Packaging and Power Modules
Among one of the most famous uses of aluminum nitride ceramics remains in electronic packaging, particularly for high-power tools such as protected entrance bipolar transistors (IGBTs), laser diodes, and radio frequency (RF) amplifiers. As power thickness increase in contemporary electronics, efficient warm dissipation ends up being essential to make certain dependability and long life. AlN substrates offer an optimum option by combining high thermal conductivity with exceptional electrical isolation, protecting against short circuits and thermal runaway conditions.
Furthermore, AlN-based straight bonded copper (DBC) and active steel brazed (AMB) substratums are increasingly employed in power module styles for electrical automobiles, renewable resource inverters, and commercial motor drives. Compared to standard alumina or silicon nitride substratums, AlN offers quicker heat transfer and much better compatibility with silicon chip coefficients of thermal growth, thus lowering mechanical stress and anxiety and boosting overall system efficiency. Recurring study intends to enhance the bonding stamina and metallization methods on AlN surface areas to more broaden its application range.
Use in Optoelectronic and High-Temperature Tools
Past digital product packaging, aluminum nitride porcelains play an essential role in optoelectronic and high-temperature applications due to their transparency to ultraviolet (UV) radiation and thermal stability. AlN is commonly used as a substrate for deep UV light-emitting diodes (LEDs) and laser diodes, especially in applications requiring sterilization, sensing, and optical interaction. Its wide bandgap and low absorption coefficient in the UV range make it a suitable prospect for supporting aluminum gallium nitride (AlGaN)-based heterostructures.
Furthermore, AlN’s capacity to operate dependably at temperatures exceeding 1000 ° C makes it suitable for use in sensors, thermoelectric generators, and components subjected to severe thermal tons. In aerospace and protection sectors, AlN-based sensor plans are used in jet engine surveillance systems and high-temperature control units where conventional materials would certainly stop working. Constant innovations in thin-film deposition and epitaxial growth methods are increasing the possibility of AlN in next-generation optoelectronic and high-temperature incorporated systems.

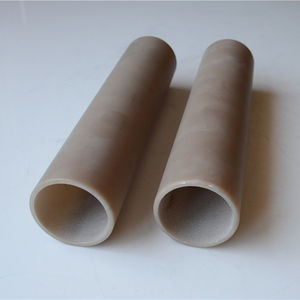

( Aluminum Nitride Ceramics)
Ecological Stability and Long-Term Dependability
A key consideration for any substrate material is its long-term dependability under functional anxieties. Light weight aluminum nitride demonstrates premium environmental security contrasted to lots of various other ceramics. It is highly resistant to corrosion from acids, alkalis, and molten steels, guaranteeing durability in hostile chemical settings. Nonetheless, AlN is susceptible to hydrolysis when exposed to wetness at raised temperatures, which can deteriorate its surface and lower thermal efficiency.
To minimize this concern, safety coatings such as silicon nitride (Si two N FOUR), light weight aluminum oxide, or polymer-based encapsulation layers are often related to enhance moisture resistance. In addition, mindful sealing and packaging approaches are carried out throughout tool assembly to preserve the integrity of AlN substrates throughout their service life. As ecological policies become much more stringent, the safe nature of AlN likewise places it as a preferred option to beryllium oxide, which presents health and wellness risks throughout processing and disposal.
Conclusion
Aluminum nitride ceramics represent a class of advanced materials distinctively suited to resolve the expanding demands for efficient thermal administration and electric insulation in high-performance electronic and optoelectronic systems. Their exceptional thermal conductivity, chemical security, and compatibility with semiconductor technologies make them the most suitable substratum product for a large range of applications– from vehicle power modules to deep UV LEDs and high-temperature sensing units. As construction innovations remain to progress and affordable manufacturing approaches grow, the adoption of AlN substratums is anticipated to rise significantly, driving innovation in next-generation digital and photonic gadgets.
