Metal 3D Printing: Additive Manufacturing of High-Performance Alloys

1. Basic Concepts and Process Categories

1.1 Definition and Core Device

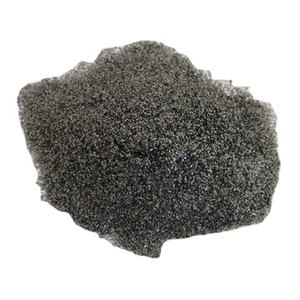

(3d printing alloy powder)

Steel 3D printing, also referred to as metal additive production (AM), is a layer-by-layer construction strategy that constructs three-dimensional metallic components directly from digital versions using powdered or cable feedstock.

Unlike subtractive techniques such as milling or transforming, which eliminate material to attain shape, steel AM includes product just where needed, enabling extraordinary geometric complexity with very little waste.

The procedure begins with a 3D CAD version sliced into thin horizontal layers (generally 20– 100 µm thick). A high-energy resource– laser or electron light beam– precisely melts or integrates steel fragments according to each layer’s cross-section, which solidifies upon cooling down to develop a dense solid.

This cycle repeats until the full component is constructed, frequently within an inert environment (argon or nitrogen) to avoid oxidation of responsive alloys like titanium or aluminum.

The resulting microstructure, mechanical properties, and surface area coating are controlled by thermal background, scan approach, and product characteristics, requiring accurate control of procedure criteria.

1.2 Significant Metal AM Technologies

Both dominant powder-bed fusion (PBF) modern technologies are Careful Laser Melting (SLM) and Electron Light Beam Melting (EBM).

SLM uses a high-power fiber laser (typically 200– 1000 W) to fully thaw metal powder in an argon-filled chamber, creating near-full thickness (> 99.5%) parts with great function resolution and smooth surface areas.

EBM employs a high-voltage electron light beam in a vacuum cleaner setting, running at higher build temperatures (600– 1000 ° C), which decreases recurring tension and enables crack-resistant processing of fragile alloys like Ti-6Al-4V or Inconel 718.

Beyond PBF, Directed Power Deposition (DED)– consisting of Laser Metal Deposition (LMD) and Cord Arc Ingredient Manufacturing (WAAM)– feeds metal powder or cord into a molten pool developed by a laser, plasma, or electrical arc, ideal for large-scale repairs or near-net-shape parts.

Binder Jetting, however much less fully grown for metals, entails transferring a liquid binding representative onto metal powder layers, followed by sintering in a heater; it provides broadband but reduced thickness and dimensional accuracy.

Each technology stabilizes trade-offs in resolution, build price, product compatibility, and post-processing needs, guiding choice based upon application demands.

2. Products and Metallurgical Considerations

2.1 Typical Alloys and Their Applications

Steel 3D printing supports a wide variety of design alloys, consisting of stainless steels (e.g., 316L, 17-4PH), device steels (H13, Maraging steel), nickel-based superalloys (Inconel 625, 718), titanium alloys (Ti-6Al-4V, CP-Ti), light weight aluminum (AlSi10Mg, Sc-modified Al), and cobalt-chrome (CoCrMo).

Stainless steels use rust resistance and modest stamina for fluidic manifolds and clinical instruments.

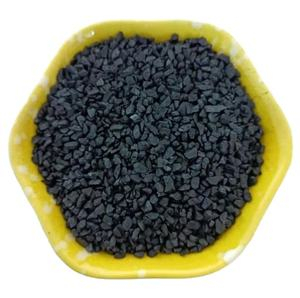

(3d printing alloy powder)

Nickel superalloys master high-temperature settings such as turbine blades and rocket nozzles as a result of their creep resistance and oxidation stability.

Titanium alloys integrate high strength-to-density ratios with biocompatibility, making them optimal for aerospace brackets and orthopedic implants.

Aluminum alloys allow light-weight structural components in automotive and drone applications, though their high reflectivity and thermal conductivity present difficulties for laser absorption and thaw swimming pool security.

Product growth continues with high-entropy alloys (HEAs) and functionally graded structures that shift residential properties within a single part.

2.2 Microstructure and Post-Processing Demands

The fast heating and cooling cycles in steel AM create one-of-a-kind microstructures– typically fine cellular dendrites or columnar grains straightened with heat circulation– that differ substantially from cast or functioned equivalents.

While this can enhance stamina via grain improvement, it might also present anisotropy, porosity, or residual stress and anxieties that compromise tiredness efficiency.

Consequently, almost all steel AM parts require post-processing: stress alleviation annealing to lower distortion, warm isostatic pushing (HIP) to close internal pores, machining for vital resistances, and surface ending up (e.g., electropolishing, shot peening) to improve fatigue life.

Heat treatments are customized to alloy systems– for example, option aging for 17-4PH to accomplish precipitation solidifying, or beta annealing for Ti-6Al-4V to optimize ductility.

Quality control relies on non-destructive screening (NDT) such as X-ray computed tomography (CT) and ultrasonic evaluation to spot inner issues unnoticeable to the eye.

3. Layout Liberty and Industrial Impact

3.1 Geometric Development and Useful Assimilation

Steel 3D printing unlocks layout paradigms difficult with conventional manufacturing, such as inner conformal cooling networks in shot molds, latticework frameworks for weight reduction, and topology-optimized load courses that decrease material usage.

Parts that as soon as called for setting up from lots of elements can now be printed as monolithic devices, minimizing joints, fasteners, and prospective failing points.

This practical combination enhances reliability in aerospace and medical devices while cutting supply chain intricacy and supply prices.

Generative layout formulas, combined with simulation-driven optimization, immediately create organic shapes that satisfy efficiency targets under real-world lots, pressing the boundaries of efficiency.

Modification at range becomes practical– dental crowns, patient-specific implants, and bespoke aerospace installations can be created financially without retooling.

3.2 Sector-Specific Adoption and Financial Value

Aerospace leads adoption, with business like GE Aeronautics printing fuel nozzles for jump engines– combining 20 parts right into one, decreasing weight by 25%, and enhancing longevity fivefold.

Medical tool makers leverage AM for porous hip stems that urge bone ingrowth and cranial plates matching patient composition from CT scans.

Automotive firms utilize metal AM for rapid prototyping, light-weight braces, and high-performance auto racing elements where efficiency outweighs expense.

Tooling sectors benefit from conformally cooled mold and mildews that cut cycle times by approximately 70%, enhancing performance in mass production.

While equipment costs continue to be high (200k– 2M), declining rates, improved throughput, and accredited material data sources are expanding ease of access to mid-sized enterprises and service bureaus.

4. Obstacles and Future Directions

4.1 Technical and Qualification Barriers

Regardless of progression, metal AM encounters difficulties in repeatability, qualification, and standardization.

Minor variations in powder chemistry, dampness content, or laser focus can alter mechanical residential properties, demanding extensive process control and in-situ surveillance (e.g., thaw pool electronic cameras, acoustic sensing units).

Accreditation for safety-critical applications– specifically in aviation and nuclear sectors– calls for considerable analytical validation under structures like ASTM F42, ISO/ASTM 52900, and NADCAP, which is time-consuming and expensive.

Powder reuse procedures, contamination dangers, and lack of global material specs even more complicate commercial scaling.

Efforts are underway to develop electronic doubles that connect process specifications to part performance, enabling anticipating quality assurance and traceability.

4.2 Arising Patterns and Next-Generation Systems

Future developments consist of multi-laser systems (4– 12 lasers) that substantially raise build rates, hybrid equipments incorporating AM with CNC machining in one system, and in-situ alloying for customized structures.

Artificial intelligence is being incorporated for real-time issue detection and adaptive parameter improvement during printing.

Lasting efforts focus on closed-loop powder recycling, energy-efficient beam resources, and life process evaluations to evaluate environmental benefits over typical techniques.

Study right into ultrafast lasers, cold spray AM, and magnetic field-assisted printing might get over present restrictions in reflectivity, recurring stress, and grain positioning control.

As these advancements grow, metal 3D printing will shift from a specific niche prototyping device to a mainstream production technique– improving just how high-value metal parts are designed, produced, and deployed across markets.
