Molybdenum Disulfide: A Two-Dimensional Transition Metal Dichalcogenide at the Frontier of Solid Lubrication, Electronics, and Quantum Materials molybdenum powder lubricant

1. Crystal Structure and Split Anisotropy

1.1 The 2H and 1T Polymorphs: Structural and Electronic Duality

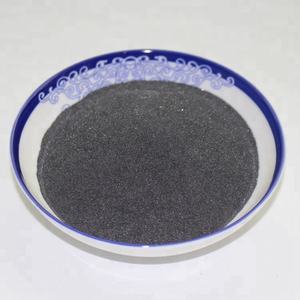

(Molybdenum Disulfide)

Molybdenum disulfide (MoS ₂) is a layered change metal dichalcogenide (TMD) with a chemical formula including one molybdenum atom sandwiched between 2 sulfur atoms in a trigonal prismatic sychronisation, creating covalently bonded S– Mo– S sheets.

These individual monolayers are stacked up and down and held with each other by weak van der Waals pressures, allowing very easy interlayer shear and exfoliation down to atomically thin two-dimensional (2D) crystals– a structural feature main to its varied functional duties.

MoS two exists in numerous polymorphic forms, one of the most thermodynamically steady being the semiconducting 2H stage (hexagonal proportion), where each layer displays a direct bandgap of ~ 1.8 eV in monolayer type that transitions to an indirect bandgap (~ 1.3 eV) wholesale, a sensation vital for optoelectronic applications.

In contrast, the metastable 1T phase (tetragonal balance) takes on an octahedral sychronisation and acts as a metallic conductor as a result of electron contribution from the sulfur atoms, making it possible for applications in electrocatalysis and conductive composites.

Phase shifts in between 2H and 1T can be induced chemically, electrochemically, or through stress design, providing a tunable system for making multifunctional gadgets.

The capacity to support and pattern these phases spatially within a single flake opens up pathways for in-plane heterostructures with distinctive electronic domain names.

1.2 Problems, Doping, and Edge States

The efficiency of MoS two in catalytic and digital applications is very conscious atomic-scale problems and dopants.

Inherent point flaws such as sulfur vacancies function as electron contributors, raising n-type conductivity and acting as active websites for hydrogen advancement responses (HER) in water splitting.

Grain borders and line defects can either hamper fee transport or produce local conductive paths, depending upon their atomic arrangement.

Regulated doping with transition steels (e.g., Re, Nb) or chalcogens (e.g., Se) allows fine-tuning of the band structure, service provider concentration, and spin-orbit combining effects.

Significantly, the sides of MoS two nanosheets, particularly the metal Mo-terminated (10– 10) sides, display considerably higher catalytic activity than the inert basal plane, inspiring the design of nanostructured drivers with made best use of edge exposure.

( Molybdenum Disulfide)

These defect-engineered systems exhibit how atomic-level control can transform a normally taking place mineral into a high-performance practical product.

2. Synthesis and Nanofabrication Techniques

2.1 Bulk and Thin-Film Production Techniques

All-natural molybdenite, the mineral kind of MoS ₂, has been utilized for years as a solid lubricant, but modern applications demand high-purity, structurally controlled synthetic forms.

Chemical vapor deposition (CVD) is the leading technique for producing large-area, high-crystallinity monolayer and few-layer MoS ₂ films on substratums such as SiO TWO/ Si, sapphire, or adaptable polymers.

In CVD, molybdenum and sulfur precursors (e.g., MoO five and S powder) are evaporated at heats (700– 1000 ° C )controlled atmospheres, enabling layer-by-layer development with tunable domain name size and alignment.

Mechanical exfoliation (“scotch tape method”) stays a standard for research-grade samples, producing ultra-clean monolayers with marginal defects, though it lacks scalability.

Liquid-phase exfoliation, involving sonication or shear mixing of mass crystals in solvents or surfactant options, creates colloidal diffusions of few-layer nanosheets appropriate for finishings, compounds, and ink solutions.

2.2 Heterostructure Combination and Gadget Pattern

Real potential of MoS two emerges when integrated right into vertical or lateral heterostructures with various other 2D materials such as graphene, hexagonal boron nitride (h-BN), or WSe two.

These van der Waals heterostructures enable the style of atomically exact tools, consisting of tunneling transistors, photodetectors, and light-emitting diodes (LEDs), where interlayer fee and energy transfer can be crafted.

Lithographic pattern and etching techniques allow the manufacture of nanoribbons, quantum dots, and field-effect transistors (FETs) with network sizes to tens of nanometers.

Dielectric encapsulation with h-BN secures MoS two from ecological degradation and decreases cost spreading, significantly enhancing service provider movement and tool stability.

These fabrication advancements are crucial for transitioning MoS two from research laboratory inquisitiveness to practical element in next-generation nanoelectronics.

3. Functional Residences and Physical Mechanisms

3.1 Tribological Habits and Solid Lubrication

Among the oldest and most long-lasting applications of MoS two is as a completely dry strong lube in severe settings where fluid oils fall short– such as vacuum cleaner, high temperatures, or cryogenic problems.

The reduced interlayer shear toughness of the van der Waals void enables easy sliding between S– Mo– S layers, leading to a coefficient of rubbing as reduced as 0.03– 0.06 under optimum conditions.

Its efficiency is further boosted by strong attachment to steel surface areas and resistance to oxidation up to ~ 350 ° C in air, past which MoO two development boosts wear.

MoS two is commonly utilized in aerospace devices, air pump, and firearm elements, commonly used as a layer using burnishing, sputtering, or composite consolidation right into polymer matrices.

Current research studies show that moisture can deteriorate lubricity by increasing interlayer bond, prompting research study right into hydrophobic layers or crossbreed lubricating substances for better environmental stability.

3.2 Electronic and Optoelectronic Feedback

As a direct-gap semiconductor in monolayer type, MoS two exhibits solid light-matter interaction, with absorption coefficients going beyond 10 ⁵ cm ⁻¹ and high quantum yield in photoluminescence.

This makes it perfect for ultrathin photodetectors with fast action times and broadband sensitivity, from noticeable to near-infrared wavelengths.

Field-effect transistors based upon monolayer MoS two demonstrate on/off proportions > 10 eight and carrier movements approximately 500 centimeters ²/ V · s in put on hold samples, though substrate interactions usually limit practical values to 1– 20 centimeters TWO/ V · s.

Spin-valley coupling, a repercussion of solid spin-orbit communication and damaged inversion symmetry, enables valleytronics– an unique standard for details encoding utilizing the valley level of freedom in momentum room.

These quantum sensations placement MoS ₂ as a prospect for low-power logic, memory, and quantum computing aspects.

4. Applications in Power, Catalysis, and Emerging Technologies

4.1 Electrocatalysis for Hydrogen Development Reaction (HER)

MoS two has actually become an encouraging non-precious alternative to platinum in the hydrogen advancement reaction (HER), a crucial process in water electrolysis for environment-friendly hydrogen production.

While the basic plane is catalytically inert, side websites and sulfur vacancies show near-optimal hydrogen adsorption complimentary energy (ΔG_H * ≈ 0), similar to Pt.

Nanostructuring techniques– such as developing vertically straightened nanosheets, defect-rich movies, or doped crossbreeds with Ni or Carbon monoxide– make the most of energetic site thickness and electric conductivity.

When integrated into electrodes with conductive sustains like carbon nanotubes or graphene, MoS ₂ accomplishes high current densities and long-term security under acidic or neutral problems.

Further enhancement is attained by stabilizing the metal 1T phase, which enhances inherent conductivity and reveals added energetic sites.

4.2 Versatile Electronic Devices, Sensors, and Quantum Instruments

The mechanical versatility, openness, and high surface-to-volume proportion of MoS two make it suitable for versatile and wearable electronics.

Transistors, logic circuits, and memory tools have actually been shown on plastic substratums, allowing flexible display screens, health displays, and IoT sensing units.

MoS ₂-based gas sensing units exhibit high level of sensitivity to NO TWO, NH FOUR, and H ₂ O as a result of bill transfer upon molecular adsorption, with action times in the sub-second array.

In quantum innovations, MoS two hosts localized excitons and trions at cryogenic temperature levels, and strain-induced pseudomagnetic areas can catch service providers, enabling single-photon emitters and quantum dots.

These developments highlight MoS two not only as a functional product but as a system for exploring basic physics in minimized dimensions.

In summary, molybdenum disulfide exemplifies the convergence of classic products science and quantum engineering.

From its ancient duty as a lube to its contemporary release in atomically slim electronic devices and power systems, MoS ₂ remains to redefine the boundaries of what is feasible in nanoscale materials design.

As synthesis, characterization, and assimilation techniques development, its effect across science and modern technology is positioned to expand also additionally.
