Silica Sol: Colloidal Nanoparticles Bridging Materials Science and Industrial Innovation kode sio2

1. Principles of Silica Sol Chemistry and Colloidal Stability

1.1 Structure and Bit Morphology

(Silica Sol)

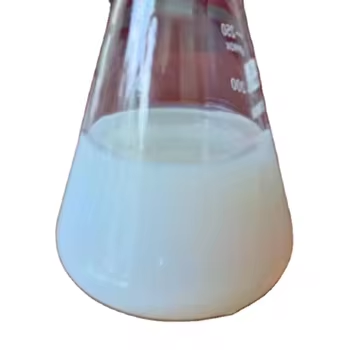

Silica sol is a stable colloidal dispersion containing amorphous silicon dioxide (SiO TWO) nanoparticles, commonly ranging from 5 to 100 nanometers in size, put on hold in a fluid stage– most frequently water.

These nanoparticles are made up of a three-dimensional network of SiO ₄ tetrahedra, developing a permeable and very responsive surface abundant in silanol (Si– OH) teams that govern interfacial behavior.

The sol state is thermodynamically metastable, maintained by electrostatic repulsion in between charged fragments; surface area fee emerges from the ionization of silanol teams, which deprotonate over pH ~ 2– 3, yielding adversely charged bits that repel each other.

Fragment form is usually spherical, though synthesis problems can affect aggregation tendencies and short-range getting.

The high surface-area-to-volume proportion– commonly exceeding 100 m TWO/ g– makes silica sol remarkably reactive, making it possible for strong communications with polymers, steels, and biological molecules.

1.2 Stabilization Devices and Gelation Transition

Colloidal security in silica sol is mostly regulated by the equilibrium between van der Waals attractive forces and electrostatic repulsion, explained by the DLVO (Derjaguin– Landau– Verwey– Overbeek) theory.

At low ionic strength and pH values above the isoelectric point (~ pH 2), the zeta possibility of bits is sufficiently adverse to stop gathering.

Nonetheless, enhancement of electrolytes, pH adjustment towards nonpartisanship, or solvent evaporation can screen surface costs, minimize repulsion, and trigger bit coalescence, causing gelation.

Gelation includes the development of a three-dimensional network via siloxane (Si– O– Si) bond development in between surrounding particles, changing the fluid sol into a stiff, porous xerogel upon drying out.

This sol-gel transition is relatively easy to fix in some systems however commonly leads to permanent architectural changes, developing the basis for advanced ceramic and composite fabrication.

2. Synthesis Paths and Process Control

( Silica Sol)

2.1 Stöber Method and Controlled Development

One of the most widely acknowledged method for generating monodisperse silica sol is the Stöber procedure, established in 1968, which includes the hydrolysis and condensation of alkoxysilanes– generally tetraethyl orthosilicate (TEOS)– in an alcoholic medium with aqueous ammonia as a stimulant.

By specifically managing specifications such as water-to-TEOS proportion, ammonia focus, solvent make-up, and reaction temperature, fragment size can be tuned reproducibly from ~ 10 nm to over 1 µm with slim dimension distribution.

The device continues via nucleation followed by diffusion-limited growth, where silanol groups condense to create siloxane bonds, developing the silica framework.

This approach is suitable for applications requiring uniform spherical fragments, such as chromatographic assistances, calibration requirements, and photonic crystals.

2.2 Acid-Catalyzed and Biological Synthesis Courses

Alternate synthesis methods consist of acid-catalyzed hydrolysis, which favors straight condensation and results in more polydisperse or aggregated particles, usually used in industrial binders and coverings.

Acidic problems (pH 1– 3) advertise slower hydrolysis but faster condensation in between protonated silanols, leading to irregular or chain-like frameworks.

A lot more just recently, bio-inspired and eco-friendly synthesis strategies have emerged, utilizing silicatein enzymes or plant essences to speed up silica under ambient conditions, lowering power consumption and chemical waste.

These sustainable methods are obtaining passion for biomedical and ecological applications where pureness and biocompatibility are vital.

Furthermore, industrial-grade silica sol is commonly generated using ion-exchange processes from sodium silicate remedies, complied with by electrodialysis to get rid of alkali ions and maintain the colloid.

3. Useful Properties and Interfacial Actions

3.1 Surface Area Reactivity and Modification Approaches

The surface of silica nanoparticles in sol is controlled by silanol groups, which can participate in hydrogen bonding, adsorption, and covalent grafting with organosilanes.

Surface adjustment making use of coupling representatives such as 3-aminopropyltriethoxysilane (APTES) or methyltrimethoxysilane introduces functional groups (e.g.,– NH ₂,– CH TWO) that change hydrophilicity, sensitivity, and compatibility with natural matrices.

These modifications allow silica sol to function as a compatibilizer in hybrid organic-inorganic compounds, enhancing dispersion in polymers and enhancing mechanical, thermal, or obstacle homes.

Unmodified silica sol shows solid hydrophilicity, making it perfect for aqueous systems, while customized variants can be spread in nonpolar solvents for specialized finishes and inks.

3.2 Rheological and Optical Characteristics

Silica sol diffusions typically show Newtonian circulation habits at low focus, however viscosity boosts with bit loading and can change to shear-thinning under high solids content or partial aggregation.

This rheological tunability is manipulated in coverings, where controlled circulation and progressing are necessary for consistent movie development.

Optically, silica sol is transparent in the noticeable range as a result of the sub-wavelength dimension of bits, which minimizes light scattering.

This openness enables its use in clear coatings, anti-reflective movies, and optical adhesives without compromising visual clarity.

When dried out, the resulting silica film retains transparency while giving firmness, abrasion resistance, and thermal stability up to ~ 600 ° C.

4. Industrial and Advanced Applications

4.1 Coatings, Composites, and Ceramics

Silica sol is extensively utilized in surface area finishes for paper, textiles, steels, and construction products to improve water resistance, scrape resistance, and sturdiness.

In paper sizing, it improves printability and dampness barrier buildings; in factory binders, it replaces natural materials with environmentally friendly not natural options that break down cleanly during spreading.

As a forerunner for silica glass and porcelains, silica sol enables low-temperature manufacture of thick, high-purity elements through sol-gel processing, avoiding the high melting factor of quartz.

It is also employed in financial investment casting, where it develops strong, refractory mold and mildews with fine surface area finish.

4.2 Biomedical, Catalytic, and Energy Applications

In biomedicine, silica sol works as a platform for medicine delivery systems, biosensors, and diagnostic imaging, where surface functionalization enables targeted binding and regulated launch.

Mesoporous silica nanoparticles (MSNs), derived from templated silica sol, supply high packing capacity and stimuli-responsive release mechanisms.

As a catalyst support, silica sol offers a high-surface-area matrix for paralyzing steel nanoparticles (e.g., Pt, Au, Pd), boosting dispersion and catalytic performance in chemical changes.

In power, silica sol is made use of in battery separators to enhance thermal security, in fuel cell membranes to improve proton conductivity, and in solar panel encapsulants to safeguard against moisture and mechanical stress and anxiety.

In recap, silica sol represents a fundamental nanomaterial that bridges molecular chemistry and macroscopic performance.

Its manageable synthesis, tunable surface area chemistry, and functional handling enable transformative applications throughout sectors, from sustainable manufacturing to sophisticated healthcare and power systems.

As nanotechnology progresses, silica sol remains to serve as a model system for developing smart, multifunctional colloidal materials.
