Silicon Carbide Crucibles: High-Temperature Stability for Demanding Thermal Processes alumina white

1. Product Fundamentals and Structural Quality

1.1 Crystal Chemistry and Polymorphism

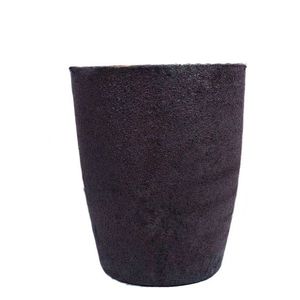

(Silicon Carbide Crucibles)

Silicon carbide (SiC) is a covalent ceramic made up of silicon and carbon atoms arranged in a tetrahedral latticework, creating among one of the most thermally and chemically robust materials understood.

It exists in over 250 polytypic forms, with the 3C (cubic), 4H, and 6H hexagonal frameworks being most relevant for high-temperature applications.

The strong Si– C bonds, with bond energy surpassing 300 kJ/mol, give phenomenal hardness, thermal conductivity, and resistance to thermal shock and chemical strike.

In crucible applications, sintered or reaction-bonded SiC is preferred due to its capability to keep structural integrity under extreme thermal slopes and corrosive liquified settings.

Unlike oxide porcelains, SiC does not go through disruptive stage shifts up to its sublimation point (~ 2700 ° C), making it excellent for sustained procedure over 1600 ° C.

1.2 Thermal and Mechanical Performance

A defining feature of SiC crucibles is their high thermal conductivity– ranging from 80 to 120 W/(m · K)– which advertises consistent warm distribution and decreases thermal anxiety throughout fast heating or cooling.

This property contrasts dramatically with low-conductivity ceramics like alumina (≈ 30 W/(m · K)), which are vulnerable to cracking under thermal shock.

SiC likewise exhibits superb mechanical toughness at raised temperature levels, retaining over 80% of its room-temperature flexural stamina (as much as 400 MPa) even at 1400 ° C.

Its reduced coefficient of thermal development (~ 4.0 × 10 ⁻⁶/ K) even more improves resistance to thermal shock, a crucial factor in duplicated biking in between ambient and functional temperature levels.

Furthermore, SiC shows exceptional wear and abrasion resistance, making certain lengthy service life in atmospheres entailing mechanical handling or unstable melt flow.

2. Production Techniques and Microstructural Control

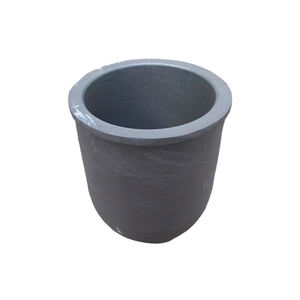

( Silicon Carbide Crucibles)

2.1 Sintering Techniques and Densification Strategies

Business SiC crucibles are mostly fabricated via pressureless sintering, reaction bonding, or warm pressing, each offering distinct benefits in price, purity, and efficiency.

Pressureless sintering involves compacting fine SiC powder with sintering aids such as boron and carbon, complied with by high-temperature therapy (2000– 2200 ° C )in inert ambience to accomplish near-theoretical thickness.

This approach returns high-purity, high-strength crucibles appropriate for semiconductor and progressed alloy handling.

Reaction-bonded SiC (RBSC) is created by infiltrating a porous carbon preform with molten silicon, which responds to form β-SiC in situ, resulting in a compound of SiC and residual silicon.

While somewhat reduced in thermal conductivity because of metal silicon incorporations, RBSC provides excellent dimensional stability and reduced production price, making it prominent for large commercial use.

Hot-pressed SiC, though much more pricey, provides the greatest thickness and purity, reserved for ultra-demanding applications such as single-crystal growth.

2.2 Surface High Quality and Geometric Accuracy

Post-sintering machining, consisting of grinding and splashing, makes certain exact dimensional tolerances and smooth internal surfaces that lessen nucleation sites and minimize contamination danger.

Surface area roughness is meticulously managed to avoid melt bond and help with easy launch of strengthened products.

Crucible geometry– such as wall surface thickness, taper angle, and lower curvature– is enhanced to balance thermal mass, architectural stamina, and compatibility with heater burner.

Custom-made styles fit certain thaw quantities, heating profiles, and product reactivity, guaranteeing optimum performance across varied commercial processes.

Advanced quality control, including X-ray diffraction, scanning electron microscopy, and ultrasonic testing, confirms microstructural homogeneity and lack of problems like pores or cracks.

3. Chemical Resistance and Communication with Melts

3.1 Inertness in Aggressive Settings

SiC crucibles show exceptional resistance to chemical attack by molten steels, slags, and non-oxidizing salts, surpassing standard graphite and oxide ceramics.

They are secure in contact with molten light weight aluminum, copper, silver, and their alloys, standing up to wetting and dissolution because of reduced interfacial power and formation of protective surface area oxides.

In silicon and germanium handling for photovoltaics and semiconductors, SiC crucibles protect against metal contamination that might break down electronic buildings.

Nevertheless, under highly oxidizing conditions or in the presence of alkaline fluxes, SiC can oxidize to create silica (SiO ₂), which may respond even more to form low-melting-point silicates.

Consequently, SiC is best fit for neutral or decreasing environments, where its stability is optimized.

3.2 Limitations and Compatibility Considerations

Despite its robustness, SiC is not globally inert; it responds with particular molten materials, specifically iron-group steels (Fe, Ni, Carbon monoxide) at high temperatures via carburization and dissolution processes.

In molten steel handling, SiC crucibles deteriorate rapidly and are consequently prevented.

Similarly, antacids and alkaline earth steels (e.g., Li, Na, Ca) can decrease SiC, releasing carbon and creating silicides, limiting their use in battery product synthesis or reactive steel spreading.

For molten glass and porcelains, SiC is usually suitable but may present trace silicon right into highly sensitive optical or electronic glasses.

Comprehending these material-specific communications is vital for choosing the proper crucible kind and ensuring process pureness and crucible longevity.

4. Industrial Applications and Technological Development

4.1 Metallurgy, Semiconductor, and Renewable Energy Sectors

SiC crucibles are indispensable in the manufacturing of multicrystalline and monocrystalline silicon ingots for solar batteries, where they hold up against prolonged direct exposure to thaw silicon at ~ 1420 ° C.

Their thermal stability makes sure uniform formation and decreases misplacement density, directly influencing photovoltaic performance.

In foundries, SiC crucibles are utilized for melting non-ferrous metals such as aluminum and brass, offering longer service life and decreased dross formation compared to clay-graphite options.

They are also utilized in high-temperature lab for thermogravimetric analysis, differential scanning calorimetry, and synthesis of innovative ceramics and intermetallic substances.

4.2 Future Fads and Advanced Material Integration

Emerging applications include making use of SiC crucibles in next-generation nuclear materials testing and molten salt activators, where their resistance to radiation and molten fluorides is being evaluated.

Coatings such as pyrolytic boron nitride (PBN) or yttria (Y ₂ O FOUR) are being applied to SiC surface areas to even more improve chemical inertness and prevent silicon diffusion in ultra-high-purity procedures.

Additive production of SiC parts using binder jetting or stereolithography is under advancement, encouraging facility geometries and rapid prototyping for specialized crucible styles.

As demand expands for energy-efficient, durable, and contamination-free high-temperature handling, silicon carbide crucibles will certainly remain a cornerstone modern technology in innovative products manufacturing.

Finally, silicon carbide crucibles stand for an essential making it possible for component in high-temperature commercial and scientific procedures.

Their unmatched combination of thermal security, mechanical strength, and chemical resistance makes them the product of selection for applications where performance and dependability are paramount.
