Spherical Alumina: Engineered Filler for Advanced Thermal Management aluminium oxygen aluminium oxide

1. Material Fundamentals and Morphological Advantages

1.1 Crystal Structure and Chemical Composition

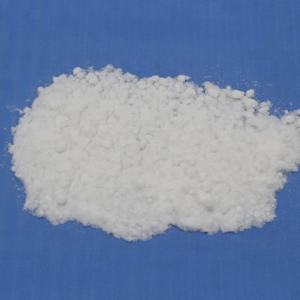

(Spherical alumina)

Spherical alumina, or round light weight aluminum oxide (Al ₂ O FOUR), is an artificially created ceramic material defined by a well-defined globular morphology and a crystalline framework mainly in the alpha (α) stage.

Alpha-alumina, the most thermodynamically stable polymorph, features a hexagonal close-packed setup of oxygen ions with light weight aluminum ions inhabiting two-thirds of the octahedral interstices, resulting in high latticework energy and exceptional chemical inertness.

This stage exhibits exceptional thermal stability, keeping honesty approximately 1800 ° C, and stands up to response with acids, alkalis, and molten metals under a lot of industrial conditions.

Unlike uneven or angular alumina powders stemmed from bauxite calcination, spherical alumina is crafted with high-temperature processes such as plasma spheroidization or fire synthesis to accomplish uniform satiation and smooth surface texture.

The transformation from angular forerunner particles– frequently calcined bauxite or gibbsite– to dense, isotropic balls eliminates sharp edges and interior porosity, improving packing performance and mechanical durability.

High-purity qualities (≥ 99.5% Al Two O SIX) are important for digital and semiconductor applications where ionic contamination must be decreased.

1.2 Bit Geometry and Packaging Habits

The defining attribute of spherical alumina is its near-perfect sphericity, usually evaluated by a sphericity index > 0.9, which considerably affects its flowability and packing thickness in composite systems.

As opposed to angular fragments that interlock and develop voids, spherical fragments roll previous one another with marginal rubbing, allowing high solids filling during formulation of thermal user interface products (TIMs), encapsulants, and potting substances.

This geometric uniformity permits maximum theoretical packaging thickness surpassing 70 vol%, much surpassing the 50– 60 vol% normal of irregular fillers.

Greater filler filling directly equates to enhanced thermal conductivity in polymer matrices, as the constant ceramic network supplies efficient phonon transportation paths.

Furthermore, the smooth surface area reduces wear on processing devices and reduces viscosity rise during blending, boosting processability and dispersion stability.

The isotropic nature of balls also avoids orientation-dependent anisotropy in thermal and mechanical residential or commercial properties, guaranteeing regular efficiency in all instructions.

2. Synthesis Techniques and Quality Control

2.1 High-Temperature Spheroidization Strategies

The manufacturing of spherical alumina mainly relies upon thermal approaches that thaw angular alumina particles and permit surface tension to improve them right into spheres.

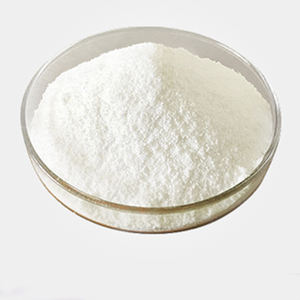

( Spherical alumina)

Plasma spheroidization is the most commonly used industrial approach, where alumina powder is injected into a high-temperature plasma flame (up to 10,000 K), causing instant melting and surface tension-driven densification into ideal balls.

The liquified beads solidify quickly during trip, forming dense, non-porous particles with uniform dimension distribution when coupled with specific classification.

Different techniques consist of flame spheroidization making use of oxy-fuel lanterns and microwave-assisted heating, though these normally provide lower throughput or much less control over fragment size.

The starting material’s pureness and bit size circulation are vital; submicron or micron-scale forerunners generate likewise sized balls after processing.

Post-synthesis, the product undergoes extensive sieving, electrostatic separation, and laser diffraction analysis to guarantee limited fragment size distribution (PSD), generally varying from 1 to 50 µm relying on application.

2.2 Surface Modification and Useful Customizing

To enhance compatibility with natural matrices such as silicones, epoxies, and polyurethanes, round alumina is often surface-treated with combining agents.

Silane coupling representatives– such as amino, epoxy, or plastic functional silanes– kind covalent bonds with hydroxyl groups on the alumina surface while supplying organic performance that interacts with the polymer matrix.

This therapy improves interfacial adhesion, decreases filler-matrix thermal resistance, and stops heap, resulting in more uniform compounds with remarkable mechanical and thermal efficiency.

Surface finishings can additionally be engineered to impart hydrophobicity, boost diffusion in nonpolar materials, or allow stimuli-responsive actions in wise thermal products.

Quality control includes measurements of BET surface, tap density, thermal conductivity (usually 25– 35 W/(m · K )for thick α-alumina), and contamination profiling through ICP-MS to exclude Fe, Na, and K at ppm degrees.

Batch-to-batch uniformity is necessary for high-reliability applications in electronics and aerospace.

3. Thermal and Mechanical Performance in Composites

3.1 Thermal Conductivity and User Interface Design

Round alumina is largely used as a high-performance filler to boost the thermal conductivity of polymer-based materials made use of in digital product packaging, LED lights, and power components.

While pure epoxy or silicone has a thermal conductivity of ~ 0.2 W/(m · K), packing with 60– 70 vol% round alumina can raise this to 2– 5 W/(m · K), sufficient for efficient warm dissipation in compact tools.

The high inherent thermal conductivity of α-alumina, combined with minimal phonon spreading at smooth particle-particle and particle-matrix user interfaces, makes it possible for reliable heat transfer via percolation networks.

Interfacial thermal resistance (Kapitza resistance) remains a restricting aspect, yet surface area functionalization and maximized dispersion techniques assist lessen this obstacle.

In thermal interface products (TIMs), round alumina lowers contact resistance in between heat-generating elements (e.g., CPUs, IGBTs) and warm sinks, avoiding overheating and expanding tool life expectancy.

Its electric insulation (resistivity > 10 ¹² Ω · cm) makes certain safety and security in high-voltage applications, identifying it from conductive fillers like metal or graphite.

3.2 Mechanical Stability and Integrity

Beyond thermal efficiency, spherical alumina enhances the mechanical effectiveness of composites by boosting firmness, modulus, and dimensional stability.

The spherical form disperses stress consistently, lowering crack initiation and propagation under thermal biking or mechanical tons.

This is particularly essential in underfill materials and encapsulants for flip-chip and 3D-packaged gadgets, where coefficient of thermal growth (CTE) mismatch can induce delamination.

By adjusting filler loading and bit dimension circulation (e.g., bimodal blends), the CTE of the composite can be tuned to match that of silicon or published motherboard, lessening thermo-mechanical anxiety.

Furthermore, the chemical inertness of alumina stops destruction in humid or harsh settings, making sure lasting reliability in automobile, commercial, and outside electronic devices.

4. Applications and Technological Development

4.1 Electronics and Electric Automobile Systems

Spherical alumina is a vital enabler in the thermal administration of high-power electronic devices, including shielded gate bipolar transistors (IGBTs), power supplies, and battery monitoring systems in electric automobiles (EVs).

In EV battery loads, it is integrated right into potting compounds and stage change products to avoid thermal runaway by evenly dispersing warmth across cells.

LED producers use it in encapsulants and additional optics to maintain lumen outcome and color uniformity by reducing joint temperature level.

In 5G facilities and information facilities, where warm change thickness are increasing, spherical alumina-filled TIMs guarantee secure procedure of high-frequency chips and laser diodes.

Its function is increasing into advanced packaging modern technologies such as fan-out wafer-level product packaging (FOWLP) and embedded die systems.

4.2 Emerging Frontiers and Sustainable Advancement

Future developments focus on hybrid filler systems integrating spherical alumina with boron nitride, aluminum nitride, or graphene to accomplish collaborating thermal efficiency while maintaining electrical insulation.

Nano-spherical alumina (sub-100 nm) is being discovered for clear porcelains, UV finishes, and biomedical applications, though challenges in diffusion and expense continue to be.

Additive production of thermally conductive polymer composites utilizing spherical alumina allows facility, topology-optimized warm dissipation structures.

Sustainability efforts consist of energy-efficient spheroidization procedures, recycling of off-spec product, and life-cycle evaluation to reduce the carbon impact of high-performance thermal materials.

In recap, spherical alumina stands for an essential crafted product at the intersection of porcelains, composites, and thermal science.

Its special mix of morphology, purity, and efficiency makes it crucial in the ongoing miniaturization and power surge of contemporary digital and energy systems.
