Alumina Ceramic Rings: Engineering Precision and Performance in Advanced Industrial Applications an electrical insulator alumina

1. The Science and Framework of Alumina Ceramic Materials

1.1 Crystallography and Compositional Versions of Light Weight Aluminum Oxide

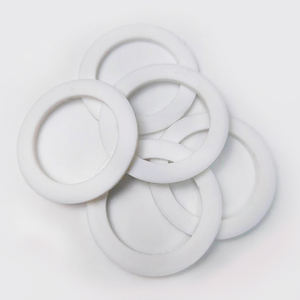

(Alumina Ceramics Rings)

Alumina ceramic rings are made from aluminum oxide (Al two O TWO), a substance renowned for its phenomenal balance of mechanical strength, thermal stability, and electric insulation.

One of the most thermodynamically secure and industrially relevant phase of alumina is the alpha (α) stage, which crystallizes in a hexagonal close-packed (HCP) structure belonging to the diamond household.

In this setup, oxygen ions develop a dense lattice with aluminum ions occupying two-thirds of the octahedral interstitial sites, leading to a very stable and robust atomic structure.

While pure alumina is in theory 100% Al ₂ O FOUR, industrial-grade products often include little percents of ingredients such as silica (SiO TWO), magnesia (MgO), or yttria (Y ₂ O FOUR) to manage grain development throughout sintering and boost densification.

Alumina ceramics are classified by purity degrees: 96%, 99%, and 99.8% Al Two O ₃ are common, with higher pureness correlating to enhanced mechanical homes, thermal conductivity, and chemical resistance.

The microstructure– particularly grain dimension, porosity, and phase distribution– plays a vital role in determining the last performance of alumina rings in service settings.

1.2 Key Physical and Mechanical Quality

Alumina ceramic rings display a collection of buildings that make them essential sought after industrial settings.

They possess high compressive stamina (up to 3000 MPa), flexural toughness (commonly 350– 500 MPa), and excellent solidity (1500– 2000 HV), enabling resistance to put on, abrasion, and deformation under lots.

Their low coefficient of thermal expansion (about 7– 8 × 10 ⁻⁶/ K) guarantees dimensional stability throughout vast temperature varieties, lessening thermal stress and anxiety and cracking during thermal cycling.

Thermal conductivity arrays from 20 to 30 W/m · K, depending on pureness, enabling modest heat dissipation– adequate for many high-temperature applications without the need for energetic air conditioning.

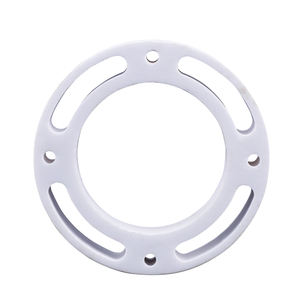

( Alumina Ceramics Ring)

Electrically, alumina is an impressive insulator with a volume resistivity exceeding 10 ¹⁴ Ω · centimeters and a dielectric toughness of around 10– 15 kV/mm, making it perfect for high-voltage insulation components.

Furthermore, alumina shows superb resistance to chemical attack from acids, alkalis, and molten steels, although it is vulnerable to attack by strong antacid and hydrofluoric acid at elevated temperature levels.

2. Production and Accuracy Engineering of Alumina Rings

2.1 Powder Processing and Forming Techniques

The production of high-performance alumina ceramic rings begins with the choice and preparation of high-purity alumina powder.

Powders are commonly manufactured via calcination of light weight aluminum hydroxide or through progressed techniques like sol-gel handling to accomplish great fragment size and slim size distribution.

To develop the ring geometry, several shaping approaches are employed, consisting of:

Uniaxial pressing: where powder is compressed in a die under high stress to develop a “eco-friendly” ring.

Isostatic pressing: using uniform pressure from all instructions utilizing a fluid medium, resulting in greater thickness and more consistent microstructure, specifically for complex or big rings.

Extrusion: appropriate for lengthy cylindrical types that are later on reduced into rings, commonly made use of for lower-precision applications.

Shot molding: utilized for intricate geometries and tight tolerances, where alumina powder is mixed with a polymer binder and injected into a mold.

Each approach affects the final thickness, grain placement, and defect distribution, demanding careful procedure selection based on application demands.

2.2 Sintering and Microstructural Development

After shaping, the eco-friendly rings undergo high-temperature sintering, typically between 1500 ° C and 1700 ° C in air or regulated ambiences.

During sintering, diffusion systems drive particle coalescence, pore removal, and grain growth, resulting in a completely dense ceramic body.

The rate of home heating, holding time, and cooling down account are exactly managed to avoid splitting, warping, or overstated grain development.

Additives such as MgO are often presented to inhibit grain border movement, causing a fine-grained microstructure that enhances mechanical stamina and reliability.

Post-sintering, alumina rings might undergo grinding and washing to achieve limited dimensional tolerances ( ± 0.01 mm) and ultra-smooth surface area coatings (Ra < 0.1 µm), important for securing, birthing, and electrical insulation applications.

3. Practical Performance and Industrial Applications

3.1 Mechanical and Tribological Applications

Alumina ceramic rings are extensively used in mechanical systems due to their wear resistance and dimensional stability.

Key applications consist of:

Sealing rings in pumps and shutoffs, where they resist erosion from unpleasant slurries and harsh liquids in chemical processing and oil & gas industries.

Bearing components in high-speed or corrosive settings where metal bearings would degrade or require constant lubrication.

Guide rings and bushings in automation tools, offering reduced friction and long life span without the demand for oiling.

Put on rings in compressors and wind turbines, minimizing clearance between revolving and fixed parts under high-pressure problems.

Their capacity to keep efficiency in completely dry or chemically hostile atmospheres makes them above numerous metallic and polymer alternatives.

3.2 Thermal and Electric Insulation Functions

In high-temperature and high-voltage systems, alumina rings act as important shielding components.

They are used as:

Insulators in heating elements and heater components, where they sustain resisting wires while withstanding temperature levels over 1400 ° C.

Feedthrough insulators in vacuum and plasma systems, stopping electric arcing while preserving hermetic seals.

Spacers and assistance rings in power electronic devices and switchgear, separating conductive parts in transformers, breaker, and busbar systems.

Dielectric rings in RF and microwave gadgets, where their reduced dielectric loss and high malfunction stamina make certain signal stability.

The combination of high dielectric strength and thermal stability enables alumina rings to operate dependably in settings where natural insulators would certainly break down.

4. Product Advancements and Future Overview

4.1 Compound and Doped Alumina Solutions

To even more boost efficiency, researchers and manufacturers are creating innovative alumina-based composites.

Instances include:

Alumina-zirconia (Al Two O TWO-ZrO TWO) composites, which exhibit boosted fracture durability via makeover toughening devices.

Alumina-silicon carbide (Al ₂ O FOUR-SiC) nanocomposites, where nano-sized SiC fragments enhance hardness, thermal shock resistance, and creep resistance.

Rare-earth-doped alumina, which can change grain border chemistry to enhance high-temperature toughness and oxidation resistance.

These hybrid materials prolong the operational envelope of alumina rings into more severe conditions, such as high-stress vibrant loading or quick thermal biking.

4.2 Emerging Trends and Technical Combination

The future of alumina ceramic rings lies in smart combination and accuracy production.

Patterns consist of:

Additive manufacturing (3D printing) of alumina parts, enabling intricate internal geometries and tailored ring layouts formerly unattainable via standard methods.

Useful grading, where composition or microstructure varies throughout the ring to maximize performance in various zones (e.g., wear-resistant outer layer with thermally conductive core).

In-situ tracking by means of embedded sensors in ceramic rings for anticipating maintenance in industrial machinery.

Increased usage in renewable energy systems, such as high-temperature gas cells and focused solar power plants, where material reliability under thermal and chemical stress and anxiety is extremely important.

As sectors demand higher performance, longer life expectancies, and lowered upkeep, alumina ceramic rings will certainly continue to play a pivotal duty in enabling next-generation engineering options.
