Alumina Ceramic Tubes: High-Performance Inorganic Conduits for Extreme Environment Applications machining boron nitride

1. Product Qualities and Architectural Design

1.1 Make-up and Crystalline Phases of Alumina

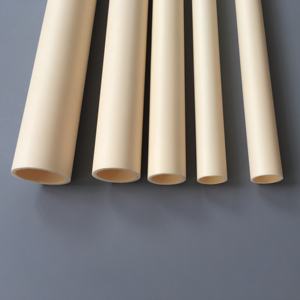

( Alumina Ceramic Tubes)

Alumina (Al Two O SIX) ceramic tubes are primarily made from high-purity aluminum oxide, with purity degrees typically ranging from 90% to 99.8%, relying on the desired application.

The dominant crystalline phase in fully thick, high-temperature sintered tubes is α-alumina (corundum), which shows a trigonal crystal structure and phenomenal thermodynamic stability.

This phase change from precursor hydroxides (e.g., boehmite or gibbsite) to α-alumina happens above 1100 ° C and causes a thick, interlocking microstructure that provides superior mechanical toughness and chemical resistance.

Higher pureness grades (≥ 99.5%) make the most of firmness, put on resistance, and dielectric performance, while lower-purity formulas may incorporate secondary phases like mullite or lustrous grain border phases to minimize expense or dressmaker thermal expansion.

The ability to manage grain dimension, porosity, and stage composition throughout processing allows designers to adjust alumina tubes for certain useful requirements throughout varied commercial domains.

1.2 Mechanical, Thermal, and Electric Properties

Alumina ceramic tubes show a special mix of physical properties that make them essential sought after engineering atmospheres.

With a Vickers firmness exceeding 1500 HV, they are very immune to abrasion and erosion, outperforming most steels and polymers in wear-prone systems.

Their compressive stamina can reach 2000 MPa, enabling structural use under high mechanical tons, while flexural stamina typically varies from 300 to 500 MPa, depending on density and surface finish.

Thermally, alumina maintains security as much as 1700 ° C in oxidizing environments, with a low coefficient of thermal development (~ 8 ppm/K), adding to exceptional thermal shock resistance when appropriately developed.

Although its thermal conductivity (~ 30 W/(m · K)) is modest compared to metals or light weight aluminum nitride, it suffices for several high-temperature applications where electrical insulation and structural honesty are focused on.

Electrically, alumina is an exceptional insulator with volume resistivity > 10 ¹⁴ Ω · centimeters and high dielectric toughness (> 15 kV/mm), making it ideal for electric feedthroughs, sensor housings, and high-voltage insulation.

( Alumina Ceramic Tubes)

2. Manufacturing Processes and Dimensional Control

2.1 Forming and Forming Methods

The manufacturing of alumina ceramic tubes entails advanced developing techniques customized to achieve precise dimensions, wall surface thickness harmony, and surface area high quality.

Typical techniques consist of extrusion, isostatic pushing, and slide casting, each matched to various dimension arrays and efficiency needs.

Extrusion is commonly made use of for long, straight tubes with constant cross-sections, where a plasticized alumina paste is compelled via a die and cut to size prior to drying and sintering.

For high-precision or thin-walled tubes, chilly isostatic pushing (CIP) applies uniform stress from all instructions to compact eco-friendly bodies, lessening distortion and improving thickness homogeneity.

Slide casting, including the deposition of a colloidal alumina suspension (slip) onto a permeable plaster mold, is ideal for complicated or large-diameter geometries with variable wall surface density.

After creating, tubes go through mindful drying out to avoid fracturing, complied with by binder fatigue and high-temperature sintering (1500– 1650 ° C )to accomplish full densification and dimensional stability.

2.2 Finishing and Quality Assurance

Post-sintering procedures such as centerless grinding, washing, and polishing are employed to achieve tight resistances, smooth surface finishes, and accurate inner and external diameters.

Resistances as limited as ± 0.01 mm are attainable for essential applications in semiconductor handling or logical instrumentation.

Surface roughness can be minimized to Ra < 0.1 µm, decreasing particle capturing and boosting compatibility with ultra-high vacuum cleaner (UHV) or cleanroom atmospheres.

Non-destructive screening methods– including ultrasonic examination, X-ray radiography, and dye penetrant screening– guarantee structural integrity and lack of cracks or spaces.

Dimensional assessment using coordinate gauging equipments (CMM) or laser scanning verifies conformity with design specs, especially for customized or high-volume production runs.

3. Functional Efficiency in Harsh Environments

3.1 Resistance to Thermal and Chemical Deterioration

One of one of the most compelling benefits of alumina ceramic tubes is their capability to endure extreme thermal and chemical conditions where metals and polymers fail.

They remain dimensionally secure and mechanically robust in constant solution at temperature levels above 1500 ° C, making them suitable for furnace liners, thermocouple protection sheaths, and glowing heating system tubes.

Their inertness to molten steels (e.g., light weight aluminum, zinc, and non-ferrous alloys), liquified salts, and numerous acids (except hydrofluoric and hot phosphoric acid) makes it possible for use in metallurgical and chemical processing tools.

In oxidizing and reducing environments, alumina does not deteriorate or catalyze unwanted responses, preserving process purity in semiconductor and glass production.

This chemical inertness likewise stops contamination in high-purity liquid dealing with systems, including those utilized in pharmaceutical and food handling sectors.

3.2 Electrical Insulation and Plasma Resistance

In electric and plasma atmospheres, alumina tubes serve as insulating barriers that maintain circuit integrity under high voltage and raised temperature level.

They are made use of in high-intensity discharge (HID) lights, where they include ionized gases at temperature levels going beyond 1000 ° C while withstanding electric potentials of numerous kilovolts.

In plasma etching and deposition systems, alumina tubes work as dielectric home windows or gas circulation components, resisting ion bombardment and thermal biking without splitting or outgassing.

Their reduced dielectric loss and high arc resistance stop electric tracking and malfunction, making certain lengthy service life in switchgear and power transmission components.

These properties are vital in keeping process security and equipment reliability in innovative manufacturing and energy systems.

4. Industrial and Arising Applications

4.1 High-Temperature and Industrial Processing Systems

Alumina ceramic tubes are essential to a large range of industrial processes that require sturdiness under extreme conditions.

In thermal handling, they function as protective sheaths for thermocouples and heating elements in kilns, heating systems, and warmth therapy equipment, shielding sensitive parts from destructive ambiences and mechanical wear.

In liquid handling, they move hostile chemicals, slurries, and high-temperature gases in petrochemical refineries, desalination plants, and waste incineration systems.

Their resistance to thermal shock enables quick home heating and cooling cycles without failing, an essential benefit in cyclic industrial operations.

In glass manufacturing, alumina tubes assist liquified glass flows and support creating equipment, standing up to erosion from viscous, high-temperature thaws.

4.2 Advanced Technologies and Future Integration

Past typical commercial uses, alumina tubes are finding brand-new duties in sophisticated modern technologies.

In semiconductor construction, ultra-pure alumina tubes are made use of in chemical vapor deposition (CVD) activators and ion implantation systems, where particle generation and metallic contamination should be lessened.

In clinical tools, biocompatible alumina tubes function as shielding parts in medical devices, oral implants, and analysis sensors.

Research study is checking out functionalized alumina tubes with embedded sensing units or conductive traces for wise structural surveillance in aerospace and energy systems.

Additive manufacturing (3D printing) of alumina is becoming a method to create intricate tube geometries with interior channels or graded make-ups, making it possible for next-generation heat exchangers and microreactors.

As sectors press towards greater efficiency, cleaner procedures, and higher reliability, alumina ceramic tubes continue to evolve as making it possible for elements in the infrastructure of modern-day innovation.

In summary, alumina ceramic tubes represent a fully grown yet dynamically advancing class of crafted products, combining phenomenal thermal, mechanical, and electrical performance in a single not natural avenue.

Their flexibility across severe environments ensures their ongoing importance in both established commercial systems and emerging high-tech applications.
