Alumina Ceramic Wear Liners: High-Performance Engineering Solutions for Industrial Abrasion Resistance alumina silica refractory

1. Product Basics and Microstructural Attributes of Alumina Ceramics

1.1 Make-up, Purity Qualities, and Crystallographic Characteristic

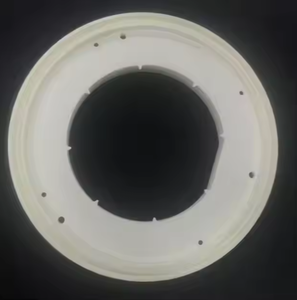

(Alumina Ceramic Wear Liners)

Alumina (Al Two O FOUR), or light weight aluminum oxide, is just one of one of the most commonly used technological ceramics in commercial engineering due to its exceptional balance of mechanical strength, chemical stability, and cost-effectiveness.

When crafted right into wear liners, alumina porcelains are typically fabricated with purity degrees varying from 85% to 99.9%, with greater purity corresponding to improved firmness, use resistance, and thermal performance.

The leading crystalline stage is alpha-alumina, which takes on a hexagonal close-packed (HCP) structure identified by solid ionic and covalent bonding, contributing to its high melting factor (~ 2072 ° C )and low thermal conductivity.

Microstructurally, alumina porcelains contain penalty, equiaxed grains whose dimension and circulation are controlled throughout sintering to enhance mechanical buildings.

Grain sizes commonly range from submicron to a number of micrometers, with better grains typically boosting fracture sturdiness and resistance to fracture propagation under rough filling.

Minor ingredients such as magnesium oxide (MgO) are typically introduced in trace amounts to inhibit uncommon grain development during high-temperature sintering, guaranteeing consistent microstructure and dimensional stability.

The resulting material exhibits a Vickers hardness of 1500– 2000 HV, significantly surpassing that of hardened steel (usually 600– 800 HV), making it extremely resistant to surface destruction in high-wear environments.

1.2 Mechanical and Thermal Performance in Industrial Issues

Alumina ceramic wear liners are chosen mainly for their outstanding resistance to abrasive, erosive, and gliding wear mechanisms prevalent in bulk product dealing with systems.

They have high compressive strength (approximately 3000 MPa), excellent flexural strength (300– 500 MPa), and excellent rigidity (Young’s modulus of ~ 380 GPa), allowing them to endure intense mechanical loading without plastic contortion.

Although inherently fragile contrasted to steels, their low coefficient of rubbing and high surface area firmness reduce particle attachment and reduce wear rates by orders of magnitude relative to steel or polymer-based choices.

Thermally, alumina keeps architectural integrity up to 1600 ° C in oxidizing ambiences, allowing use in high-temperature processing environments such as kiln feed systems, central heating boiler ducting, and pyroprocessing equipment.

( Alumina Ceramic Wear Liners)

Its reduced thermal development coefficient (~ 8 × 10 ⁻⁶/ K) contributes to dimensional security throughout thermal cycling, minimizing the risk of fracturing because of thermal shock when correctly installed.

Furthermore, alumina is electrically shielding and chemically inert to many acids, alkalis, and solvents, making it suitable for harsh atmospheres where metal liners would deteriorate rapidly.

These combined homes make alumina porcelains suitable for shielding critical facilities in mining, power generation, concrete manufacturing, and chemical processing industries.

2. Manufacturing Processes and Design Combination Strategies

2.1 Shaping, Sintering, and Quality Assurance Protocols

The production of alumina ceramic wear liners includes a series of precision manufacturing actions created to achieve high density, marginal porosity, and regular mechanical efficiency.

Raw alumina powders are refined with milling, granulation, and creating techniques such as completely dry pressing, isostatic pushing, or extrusion, relying on the wanted geometry– tiles, plates, pipes, or custom-shaped segments.

Environment-friendly bodies are after that sintered at temperature levels in between 1500 ° C and 1700 ° C in air, promoting densification with solid-state diffusion and accomplishing relative thickness going beyond 95%, commonly coming close to 99% of academic thickness.

Complete densification is vital, as recurring porosity acts as stress concentrators and speeds up wear and fracture under solution problems.

Post-sintering operations might include ruby grinding or splashing to accomplish limited dimensional tolerances and smooth surface coatings that reduce rubbing and bit capturing.

Each set goes through extensive quality assurance, consisting of X-ray diffraction (XRD) for phase evaluation, scanning electron microscopy (SEM) for microstructural analysis, and solidity and bend screening to confirm compliance with worldwide requirements such as ISO 6474 or ASTM B407.

2.2 Placing Methods and System Compatibility Factors To Consider

Reliable integration of alumina wear liners right into industrial tools needs cautious interest to mechanical accessory and thermal growth compatibility.

Common setup techniques include adhesive bonding utilizing high-strength ceramic epoxies, mechanical fastening with studs or supports, and embedding within castable refractory matrices.

Glue bonding is commonly used for level or carefully curved surfaces, giving consistent stress circulation and vibration damping, while stud-mounted systems allow for very easy substitute and are favored in high-impact zones.

To accommodate differential thermal development between alumina and metallic substrates (e.g., carbon steel), crafted spaces, versatile adhesives, or compliant underlayers are incorporated to avoid delamination or fracturing throughout thermal transients.

Designers need to likewise take into consideration edge defense, as ceramic floor tiles are prone to damaging at exposed edges; remedies consist of beveled edges, metal shadows, or overlapping floor tile arrangements.

Correct installation makes sure lengthy service life and maximizes the protective feature of the liner system.

3. Use Mechanisms and Efficiency Analysis in Service Environments

3.1 Resistance to Abrasive, Erosive, and Effect Loading

Alumina ceramic wear liners excel in atmospheres controlled by 3 main wear devices: two-body abrasion, three-body abrasion, and bit erosion.

In two-body abrasion, tough fragments or surface areas directly gouge the liner surface, a common event in chutes, hoppers, and conveyor shifts.

Three-body abrasion involves loosened fragments trapped between the liner and moving material, bring about rolling and scraping activity that progressively eliminates product.

Erosive wear happens when high-velocity bits strike the surface area, particularly in pneumatically-driven sharing lines and cyclone separators.

Because of its high firmness and reduced fracture toughness, alumina is most efficient in low-impact, high-abrasion scenarios.

It performs extremely well against siliceous ores, coal, fly ash, and concrete clinker, where wear prices can be minimized by 10– 50 times compared to light steel liners.

Nonetheless, in applications involving repeated high-energy impact, such as key crusher chambers, crossbreed systems integrating alumina tiles with elastomeric supports or metallic shields are often used to soak up shock and prevent crack.

3.2 Field Screening, Life Process Analysis, and Failing Mode Evaluation

Performance analysis of alumina wear liners involves both laboratory screening and field monitoring.

Standardized tests such as the ASTM G65 completely dry sand rubber wheel abrasion examination provide comparative wear indices, while tailored slurry disintegration gears replicate site-specific problems.

In commercial settings, use rate is generally determined in mm/year or g/kWh, with life span forecasts based on preliminary thickness and observed degradation.

Failure modes consist of surface sprucing up, micro-cracking, spalling at edges, and complete tile dislodgement because of adhesive destruction or mechanical overload.

Origin evaluation commonly discloses installation errors, inappropriate grade choice, or unanticipated effect tons as primary contributors to early failing.

Life process price evaluation constantly shows that regardless of greater initial prices, alumina linings use remarkable total price of ownership because of prolonged replacement periods, decreased downtime, and reduced maintenance labor.

4. Industrial Applications and Future Technological Advancements

4.1 Sector-Specific Applications Throughout Heavy Industries

Alumina ceramic wear liners are released throughout a wide spectrum of industrial industries where product degradation poses operational and economic challenges.

In mining and mineral processing, they shield transfer chutes, mill liners, hydrocyclones, and slurry pumps from rough slurries containing quartz, hematite, and other hard minerals.

In power plants, alumina ceramic tiles line coal pulverizer ducts, central heating boiler ash hoppers, and electrostatic precipitator parts revealed to fly ash erosion.

Concrete producers utilize alumina linings in raw mills, kiln inlet areas, and clinker conveyors to battle the very unpleasant nature of cementitious materials.

The steel industry utilizes them in blast furnace feed systems and ladle shadows, where resistance to both abrasion and moderate thermal loads is essential.

Also in less traditional applications such as waste-to-energy plants and biomass handling systems, alumina ceramics give sturdy defense against chemically aggressive and fibrous products.

4.2 Arising Fads: Compound Systems, Smart Liners, and Sustainability

Current study concentrates on enhancing the toughness and functionality of alumina wear systems via composite style.

Alumina-zirconia (Al ₂ O SIX-ZrO ₂) compounds take advantage of transformation toughening from zirconia to improve fracture resistance, while alumina-titanium carbide (Al ₂ O THREE-TiC) grades supply boosted efficiency in high-temperature gliding wear.

Another technology involves embedding sensing units within or beneath ceramic liners to monitor wear progression, temperature, and influence regularity– allowing anticipating upkeep and digital double integration.

From a sustainability viewpoint, the prolonged service life of alumina linings decreases material usage and waste generation, aligning with circular economic climate concepts in industrial procedures.

Recycling of invested ceramic liners into refractory accumulations or construction materials is likewise being explored to reduce environmental footprint.

To conclude, alumina ceramic wear linings represent a cornerstone of contemporary industrial wear security technology.

Their extraordinary hardness, thermal stability, and chemical inertness, incorporated with fully grown production and installment methods, make them essential in combating material destruction throughout hefty industries.

As material science developments and digital surveillance comes to be more incorporated, the future generation of clever, resilient alumina-based systems will additionally improve functional effectiveness and sustainability in rough environments.
