Bearings are frequently called the “joints of sector.” Getting the option right directly impacts your equipment’s dependability, life span, and upkeep expenses. Several bearing failures don’t come from poor quality– they come from wrong selections. Things like lots calculation mistakes, neglecting rate limitations, or picking the wrong lubrication technique. These small blunders can cause tools to damage down early in its life span. This guide walks you with the whole choice procedure, offering engineers and purchase professionals a clear course from evaluating working problems to validating the best bearing design.

Component One: What You Need to Know Prior To Starting

Prior to you open any bearing magazine, ask yourself one concern: What exactly does this equipment need the bearing to do? The answer depends on 5 vital areas:

1. Load Qualities

Lots is the number one factor in birthing option. You require to identify 3 points:

Direction: Is it radial lots (vertical to the shaft), axial load (parallel to the shaft), or a combination of both?

Size: Is it light, modest, or heavy? Any type of effect lots?

Nature: Is the lots consistent or transforming? Exactly how commonly do effect loads take place and just how strong are they?

Take a belt conveyor for example. The bearings at the drive end tackle radial tons from belt stress, the weight of the belt and rollers, plus the shaft setting up. When determining, you have to take into consideration different operating problems– startup, typical running, stopping– and use the worst-case situation for your style.

2. Rate Conditions

(bearings for steel mill)

Speed is an additional critical factor impacting birthing life. According to fatigue life theory, bearing life has an inverse partnership with speed. For variable speed conditions, you require to compute the equivalent rate. Take a rotary kiln assistance roller– its rate could range from 0.5 to 2.5 r/min. You would certainly need to weight the running time at each rate to obtain an equal worth.

Something to keep an eye out for: knowing just the optimum rate can ruin your lubrication method. The lubricating substance you choose based upon full throttle could not develop a proper oil film at lower rates. Also, if your equipment has long idle periods, you need to discuss that– otherwise neighboring tools vibrations could create false brinelling damages.

3. Required Service Life

Birthing life span is normally revealed as L10h (the number of hours that 90% of a bearing team will get to prior to tiredness spalling shows up). A typical blunder is choosing an extremely lengthy life– once L10h surpasses 100,000 hours, the bearing size obtains also huge. It ends up being more challenging to lube, torque rises, and it comes to be extra sensitive to minimal lots. In the long run, it could fall short for factors besides tiredness.

4. Room Constraints

You need to understand your offered area restrictions from the beginning– shaft diameter range, real estate bore dimension, axial length limitations. As soon as you recognize the matching shaft diameter and readily available space, you can promptly limit your alternatives.

5. Running Accuracy Needs

Many applications do just fine with common precision bearings. But also for high-speed or high-precision tools like maker device pins, you’ll need P5, P4, or even greater grades. Simply remember that opting for greater precision without a genuine requirement will certainly increase prices dramatically. Match the grade to your real requirements.

Sequel: Matching Birthing Types to Functioning Conditions

Once you have those parameters clear, the next step is to match the appropriate bearing kind based upon lots instructions, dimension, rate, and imbalance resistance.

1. Tons Direction: Radial, Axial, or Integrated?

This is one of the most fundamental filter. It can aim you to a couple of prospects as soon as possible:

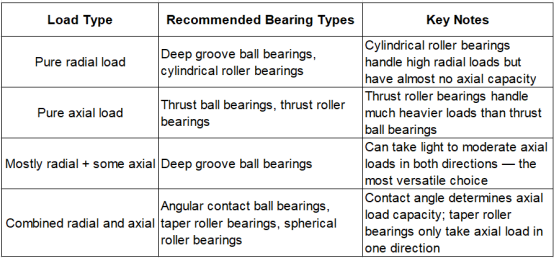

When the axial-to-radial lots proportion (Fa/Fr) changes, your option reasoning adjustments also. At reduced proportions, go with deep groove sphere bearings. At modest ratios, utilize small-contact-angle angular get in touch with bearings or taper roller bearings. At high proportions, you’ll need large-contact-angle bearings, or think about combining a drive bearing with a radial bearing.

( Radial)

2. Load Dimension: Sphere Bearings or Roller Bearings?

This is a classic choice:

Light or modest lots: Go with ball bearings (deep groove or angular get in touch with). The factor contact in between rounds and raceways gives reduced rubbing, making them ideal for tool to broadband.

Hefty or effect tons: You should make use of roller bearings (round, round, or taper). Line contact between rollers and raceways provides a lot greater load ability and better effect resistance.

3. Rate: Ball Bearings for High Speed, Roller Bearings for Low

Usually speaking, ball bearings have greater speed limits than roller bearings. For high-speed applications (over 1000 r/min), put ball bearings at the top of your listing. When you require the highest feasible speed with pure radial tons, open deep groove ball bearings are your best option. For integrated lots at broadband, angular get in touch with sphere bearings are the method to go.

Cylindrical roller bearings, taper roller bearings, and needle bearings have relatively reduced speed restrictions. They’re mainly suited for low-to-medium rate, heavy-load conditions.

4. Imbalance Resistance: Do You Need Self-Aligning?

This commonly obtains overlooked yet it’s incredibly essential. You ought to take into consideration self-aligning bearings when:

Birthing housing bores don’t line up well

The shaft isn’t stiff enough and flexes throughout procedure

The bearing period is lengthy and thermal development triggers angular misalignment

You’re making use of different split housings (like pillow block bearings)

Spherical roller bearings and round sphere bearings have scooped external ring raceways. This enables a particular amount of angular imbalance between the inner and external rings without hazardous edge anxiety. They can make up for both vibrant deflection and static setup errors.

On the other hand, cylindrical roller bearings, taper roller bearings, and needle bearings have extremely restricted self-aligning capacity. Also a tiny angular misalignment can create stress focus at the roller ends, resulting in high edge stress that significantly shorten birthing life. Deep groove round bearings do have some self-aligning capability, however the allowed angle is tiny– going beyond it will minimize life too.

5. Axial Growth Settlement: Fixed End or Drifting End?

Lengthy shafts increase and contract with temperature adjustments during procedure. That means you need to establish your bearing setup with one set end and one floating end.

NU and N series round roller bearings have no flanges on the internal ring (or on one side). This lets the shaft step easily in the axial instructions relative to the housing– making them perfect as floating-end bearings. NJ and NUP series can offer axial positioning in one or both directions, so they work well as fixed-end bearings. This setup is extremely usual in transmissions and electrical motors.

Component 3: BMB Product at a Glimpse

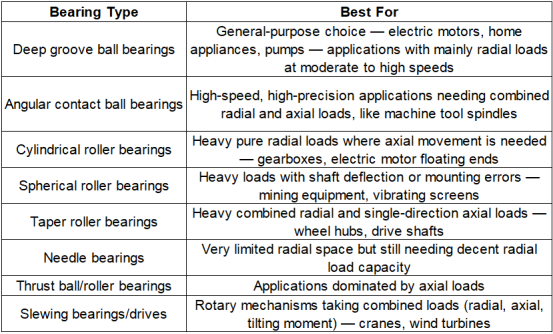

BMB uses a complete range of commercial bearings, covering all the significant kinds we’ve gone over. This quick referral table links the selection concepts over straight to certain product categories:

Component Four: Diving Deeper– Accuracy, Clearance, Lubrication, and Seals

( Axial)

1. Precision Grades

Requirement accuracy (P0) benefits the huge bulk of general equipment. For precision devices like machine tool spindles or aerospace components, you’ll need P5 or higher. Tighter precision implies tighter dimensional resistances and far better running accuracy– yet also higher prices.

2. Internal Clearance and Preload

Bearings need to keep appropriate inner clearance after installment. Excessive clearance causes vibration and sound. Insufficient, and thermal expansion can create the bearing to take. In special cases like maker tool pins, preload (using negative clearance) is made use of to improve system rigidity and rotational accuracy.

3. Lube Option

Lubrication is a make-or-break variable for bearing life. Oil benefits a lot of moderate-speed and temperature level applications– it’s easy to seal and can run maintenance-free for long periods. Oil (oil bath, oil mist, jet lubrication) is much better for high-speed or high-temperature conditions, as it dissipates warmth more effectively. When picking a lube, check the rate aspect (ndm worth). Don’t just pick based upon optimum rate– the oil you pick could not create a correct movie at reduced rates.

4. Securing Program

Choose the seal kind based upon your environment: call seals maintain dirt out well however include some rubbing; non-contact seals help high speeds however offer less security versus contamination; open bearings count on exterior sealing systems.

Part 5: Life Computation– From Theory to Practice

( or Combined Basic Filter Table)

At the end of the day, you require to validate whether your chosen bearing will actually meet the predicted life span. This is where basic ranking life computation comes in.

The basic rating life L10 formula (ISO 281 criterion):

For ball bearings: L10 = (C/P) SIX × (10 SIX/ 60n) hours

For roller bearings: L10 = (C/P)^(10/3) × (10 SIX/ 60n) hours

Where:

C: standard vibrant tons score (kN)– found in the item catalog

P: comparable vibrant tons (kN)– takes both radial and axial loads into account

The equivalent dynamic tons P is determined as: P = X · Fr + Y · Fa

Fr is the radial lots, Fa is the axial lots

X and Y are coefficients that depend upon bearing kind and the Fa/Fr proportion– examine the magazine for these values

For more demanding conditions, you can use change elements: Ln = a1 × a2 × a3 × L10

a1 is the integrity element (a1 = 1 for 90% integrity, about 0.21 for 99%)

a2 is the product factor (top notch bearing steel can reach 1.5 to 2)

a3 is the operating conditions factor (excellent lubrication and sanitation can give 2 to 3)

With this estimation, engineers can validate that the chosen bearing satisfies the necessary life span. It additionally aids contrast multiple choices and make data-driven choices.

This overview has actually strolled you via the total option course– from examining working conditions, to matching the best bearing kind, to verifying life expectancy. Comprehending and using this approach will certainly aid you make accurate, effective, and cost-effective bearing choices across a wide variety of commercial applications.
