Silicon Anode Materials: Breaking Through Graphite’s Ceiling Anode Materials
1. The Ability Ceiling of Graphite and the Silicon Possibility
For decades, graphite has actually served as the foundation of lithium-ion battery anodes, providing reputable cycling security and well-established manufacturing processes.

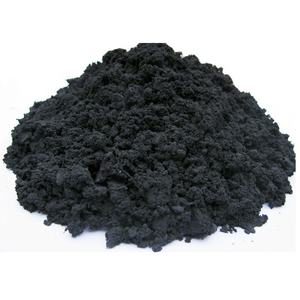

(Battery material)
Yet graphite’s theoretical certain capacity of 372 mAh g ⁻¹ is quickly approaching its physical limit, producing a basic traffic jam for next-generation power storage space applications that require ever-higher energy thickness.
Silicon offers a compelling option, with an academic capacity more than eleven times that of graphite, rising to 4,200 mAh g ⁻¹.
This amazing capacity allows batteries that are lighter, smaller sized, and capable of keeping significantly a lot more energy per unit quantity or weight.
The market reaction has actually been quick and considerable, with global deliveries rising greatly year over year and production capability broadening at an unprecedented rate.
Industry analysts consistently highlight silicon anode products as one of the fastest-growing segments in the battery supply chain, driven by pressing need from electric automobiles, customer electronic devices, and emerging high-power applications.
This rapid expansion signals that silicon anode innovation has actually decisively gone across the limit from laboratory research to industrial-scale commercialization.
2. The Commercialization Inflection Point
The change from graphite to silicon-based anodes is no more a distant guarantee however an unfolding truth.

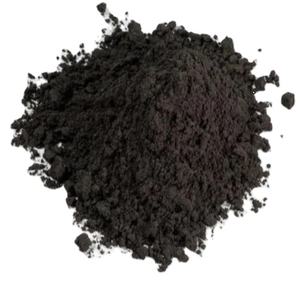

(Graphite)
In early 2026, a leading battery manufacturer introduced its latest generation of high-energy-density cells, attaining cell-level power thickness well above 350 Wh/kg through low-expansion silicon-carbon anodes– a milestone that industry observers have actually characterized as marking the beginning of large-scale commercial adoption of silicon anodes.
Significant battery manufacturers and automobile OEMs are currently actively incorporating silicon anode products into their item roadmaps, with a number of high-volume production lines already in procedure.
Silicon-graphite compounds with moderate silicon filling stand for the lowest-risk commercialization path for the present stage of electric lorry shift, while pure silicon anodes, providing also greater ability, stay a longer-term suggestion as the sector continues to fine-tune producing procedures and address resilience obstacles.
The application scope is likewise broadening swiftly beyond standard power devices and customer electronic devices.
Today, costs electrical vehicles, electric upright departure and landing aircraft, and advanced robotics applications are becoming substantial growth markets for silicon anodes, since these fields need power thickness levels that graphite-based systems can no longer support.
Silicon-carbon materials are extensively acknowledged as the secret to crossing this performance barrier and allowing the next generation of lightweight, long-range energy storage.
3. The Technical Challenges That Held Silicon Back
Regardless of its amazing ability benefits, silicon has actually encountered 3 interconnected technological barriers that have historically postponed its prevalent commercialization.

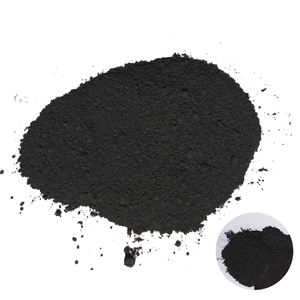

(Silicon Anode Materials)
The initial and most basic obstacle is extreme quantity expansion.
Silicon goes through volumetric growth of a number of hundred percent during lithiation, generating mechanical stress and anxiety that causes fragment fracture, electrode structural collapse, and loss of electrical contact with existing collectors.
The 2nd challenge concerns the strong electrolyte interphase, a passivation layer that bases on the anode surface area throughout the first cost cycle.
In silicon anodes, the severe quantity development triggers this layer to repetitively crack and change with each cycle, consuming lithium supply and degrading cycle life with irreversible lithium loss and fast ability decay.
The third challenge is low intrinsic electric conductivity, as silicon’s semiconductor properties limit electron transport within the electrode, requiring the unification of conductive additives to preserve sufficient price capability.
These obstacles are adjoined: volume expansion worsens SEI instability, and inadequate conductivity substances the efficiency degradation from both.
Conquering this set of three of obstacles has needed continual innovation throughout several fronts– from nanostructural style to composite designs to electrolyte chemistry– and has actually driven the advancement of the business services we see today.
4.Silicon-Carbon Composites: The Leading Business Solution
Silicon-carbon composites have become the leading business approach to taking advantage of silicon’s capability while reducing its drawbacks.

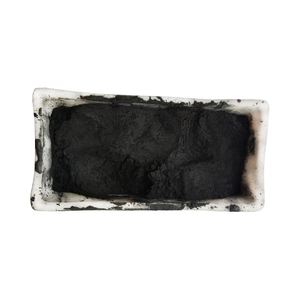

(Anode Materials)
The carbon component offers numerous important features: it supplies a conductive matrix that makes up for silicon’s inadequate electric conductivity, produces barrier space to suit quantity changes, and enhances interfacial communications between silicon particles and the surrounding electrode framework.
The commercial momentum behind silicon-carbon anode products is undeniable, with manufacturing quantities growing continuously and new manufacturing facilities coming online around the world.
A number of distinctive production approaches exist for silicon-carbon composites, each with its very own benefits.
CVD-based silicon-carbon products entail depositing silicon onto carbon substratums via chemical vapor deposition, enabling specific control over silicon material and distribution, and technological growth in this area is concentrating on increasing silicon loading, optimizing carbon covering design, and enhancing preliminary coulombic effectiveness and cycle stability.
Nano-porous silicon-carbon compounds use another path, where the permeable framework offers inner gap room that accommodates silicon expansion internal instead of outward, minimizing stress on the total electrode style.
Business are also exploring pre-lithiated silicon-carbon products, which make up for preliminary lithium usage throughout SEI development, enhancing first-cycle performance and total energy density.
The variety of these methods reflects the market’s recognition that no single option fits all applications– different silicon loadings, fragment dimensions, and composite styles match different performance requirements and price targets, and ongoing study continues to fine-tune each of these routes.
5. The Critical Function of Advanced Binders in Silicon Anode Performance
The binder system in a silicon anode is even more than a glue– it is an active part that fundamentally establishes electrode honesty and cycling stability.

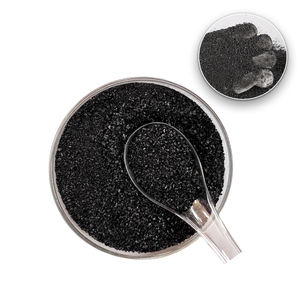

( Battery material)
Standard graphite anodes rely upon a basic binder system combining styrene-butadiene rubber with carboxymethyl cellulose, but for silicon-containing anodes, this system commonly proves inadequate in holding up against the repeated stress from volume modifications.
The binder must fit massive mechanical strain, keep adhesion between silicon bits and the current collector through numerous expansion-contraction cycles, and add to preserving the electric network within the electrode.
Polyacrylic acid has become a remarkable binder for silicon anodes as a result of its flexibility and solid bond homes, with countless researches demonstrating that electrodes utilizing PAA plus SBR binders continually supply the very best efficiency, attaining high first coulombic performance, high reversible ability, and stable capability retention over prolonged cycling.
Beyond PAA, scientists are investigating ternary composite binders that incorporate multiple polymer components to accomplish synergistic results, and some have actually reported ternary composite binders designed particularly for silicon-carbon blend anodes.
The binder market is replying to these advancing needs, with CMC/SBR systems optimized for silicon blends presently leading the marketplace due to their ability to develop secure, high-capacity composites, while water-based binders including SBR, CMC, and PAA are significantly put on next-generation silicon-based electrodes, showing the sector’s push towards more lasting manufacturing processes.
Binder engineering has additionally become a vital method for alleviating the coulombic efficiency trough– the particular dip in effectiveness caused by silicon volume expansion, duplicated SEI revival, and consistent lithium loss– as sophisticated binder styles maintain structural honesty and advertise steady SEI development, straight resolving the origin of ability fade.
6. Conductive Additives: Constructing the Electric Highway
Silicon’s reduced inherent electric conductivity indicates that conductive ingredients are not optional– they are crucial for attaining functional rate capability and cycle life.
(Silicon Anode Materials)
Typical carbon black has long acted as the standard conductive additive in battery electrodes, yet the needs of silicon anodes have actually pressed the industry toward more advanced carbon architectures.
Carbon nanotubes and graphene have actually emerged as essential conductive ingredients driving technical innovation in this field, showing premium electric conductivity, superb mechanical versatility, and special dimensional advantages contrasted to typical carbon black.
CNTs supply one-dimensional conductive paths that bridge between silicon bits, while graphene provides two-dimensional conductive sheets that can twist around and interconnect bits, and three-dimensional carbon skeletons comprising both carbon nanotubes and graphene sheets serve as a conductive matrix while likewise supplying barrier area to suit volume modifications throughout cost and discharge.
The dual carbon network technique has actually shown specific pledge, with study demonstrating that silicon nanoparticles properly enveloped in reduced graphene oxide and carbon nanotube interlaced networks– with high surface area, big pore quantity, and bountiful porous framework– accomplish enhanced lithium storage kinetics.
Advanced conductive additives also add to SEI security, as fluoride-doped carbon conductive additives allow the building of LiF-rich SEI layers on silicon anodes, decreasing overall anode volume development and increasing biking security without inducing harmful side reactions.
The expanding need for high-performance conductive ingredients is mirrored in the quick growth of manufacturing ability for customized carbon materials, especially permeable carbons developed especially for CVD silicon-carbon anodes, which are seeing phenomenal growth rates as suppliers seek to optimize their silicon anode formulations.
The option of conductive ingredients should be tailored to the certain silicon bit size, morphology, and composite design employed in each application– for silicon nanoparticles below a particular limit, carbon nanotube networks can give efficient electron transport without excessive additive loading, while for bigger silicon fragments or greater silicon content anodes, hybrid conductive networks combining multiple carbon designs might be essential to preserve performance.
7. The Evolving Supply Chain and Manufacturing Landscape
As silicon anode commercialization accelerates, the supply chain is undertaking fast improvement to satisfy growing need.
(Anode Materials)
Worldwide crucial battery silicon anode product manufacturers consist of developed chemical companies and specialized material providers, with the top gamers jointly holding a substantial share of the marketplace, while new participants remain to emerge with ingenious manufacturing technologies.
Manufacturing capability is being built across numerous regions, with several major centers having begun commercial-scale procedures in current months, and additional capacity growths are actively underway.
As an example, one leading maker has actually started EV-scale production of its sophisticated silicon-carbon material at a new factory developed for considerable yearly result, equivalent to a substantial battery capability, and this product has actually shown compatibility with multiple cathode chemistries, enabling both high power density and ultra-fast billing abilities.
Other business have introduced supply contracts for silicon-carbon compounds developed as drop-in replacements for graphite in existing lithium-ion cell manufacturing processes, while joint endeavors in between material experts and chemical titans are progressing the industrialization of next-generation composite anode products.
Domestic production ability is also increasing quickly in various areas, with numerous companies reporting boosting regular monthly deliveries and releasing new production lines that have currently supplied samples to leading battery manufacturers for performance screening.
The upstream basic material supply chain is additionally evolving, with crucial resources including metallurgical silicon, silane, graphite, and porous carbon, and providers making certain secure material supply and high quality consistency with committed production centers.
International demand for silane, particularly, is being stimulated by silicon anode production development, as silane-based paths continue to be a key production path for lots of manufacturers, while alternative manufacturing approaches– such as low-temperature decrease processes– use the capacity for more cost-effective and sustainable production.
Techno-economic analyses have shown that these innovative paths can significantly lower the price and ecological footprint of silicon production, making them appealing options for the next wave of capability expansion.
As the whole community– from raw materials to complete anode powders– remains to develop, the silicon anode industry is poised for sustained development, with manufacturers and suppliers functioning closely to attend to technological difficulties, range production, and bring high-performance, cost-competitive solutions to the worldwide battery market.
At Nanotrun, we are dedicated to progressing silicon anode technology via our comprehensive profile of high-performance materials, including high-purity silicon-based powders, custom-formulated silicon-carbon composites, and advanced conductive additive remedies crafted to fulfill the requiring requirements of next-generation lithium-ion batteries.
( Battery material)
We comprehend that the transition to silicon anodes is not a straightforward product replacement yet a system-level transformation that requires mindful optimization of every component, and our group functions very closely with clients to develop tailored options that resolve their particular performance targets, making constraints, and price purposes.
As the silicon anode market proceeds its quick growth, Nanotrun stands ready to support battery suppliers, cell producers, and OEMs in making the shift from graphite to silicon-enhanced electrodes, and we welcome you to discover how our innovative product remedies can assist you attain greater energy thickness, longer cycle life, and remarkable battery efficiency.
Call us today to review your silicon anode product demands and uncover the Nanotrun distinction.
