Quartz Ceramics: The High-Purity Silica Material Enabling Extreme Thermal and Dimensional Stability in Advanced Technologies alumina refractory

1. Essential Make-up and Architectural Characteristics of Quartz Ceramics

1.1 Chemical Pureness and Crystalline-to-Amorphous Change

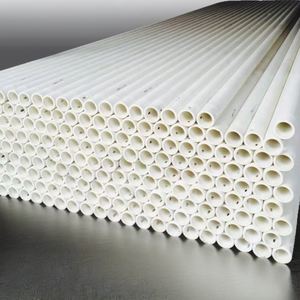

(Quartz Ceramics)

Quartz porcelains, additionally known as fused silica or fused quartz, are a class of high-performance inorganic products derived from silicon dioxide (SiO ₂) in its ultra-pure, non-crystalline (amorphous) kind.

Unlike conventional ceramics that depend on polycrystalline frameworks, quartz porcelains are differentiated by their total lack of grain boundaries as a result of their lustrous, isotropic network of SiO four tetrahedra adjoined in a three-dimensional arbitrary network.

This amorphous framework is accomplished with high-temperature melting of all-natural quartz crystals or synthetic silica precursors, complied with by fast air conditioning to avoid formation.

The resulting product has normally over 99.9% SiO ₂, with trace contaminations such as alkali steels (Na ⁺, K ⁺), light weight aluminum, and iron maintained parts-per-million levels to protect optical clarity, electrical resistivity, and thermal efficiency.

The absence of long-range order removes anisotropic behavior, making quartz porcelains dimensionally steady and mechanically consistent in all instructions– an important advantage in precision applications.

1.2 Thermal Actions and Resistance to Thermal Shock

One of the most defining functions of quartz porcelains is their exceptionally reduced coefficient of thermal growth (CTE), usually around 0.55 × 10 ⁻⁶/ K between 20 ° C and 300 ° C.

This near-zero expansion arises from the flexible Si– O– Si bond angles in the amorphous network, which can adjust under thermal tension without damaging, enabling the material to hold up against quick temperature level modifications that would certainly fracture standard ceramics or steels.

Quartz porcelains can endure thermal shocks surpassing 1000 ° C, such as straight immersion in water after heating up to red-hot temperatures, without fracturing or spalling.

This residential property makes them essential in atmospheres entailing repeated home heating and cooling cycles, such as semiconductor handling furnaces, aerospace components, and high-intensity illumination systems.

Furthermore, quartz porcelains keep structural honesty as much as temperature levels of approximately 1100 ° C in continuous service, with temporary exposure tolerance approaching 1600 ° C in inert ambiences.

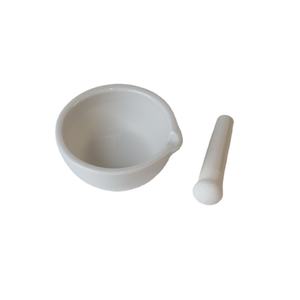

( Quartz Ceramics)

Beyond thermal shock resistance, they show high softening temperature levels (~ 1600 ° C )and superb resistance to devitrification– though extended direct exposure over 1200 ° C can launch surface area formation right into cristobalite, which may endanger mechanical strength due to volume adjustments during stage transitions.

2. Optical, Electrical, and Chemical Residences of Fused Silica Solution

2.1 Broadband Openness and Photonic Applications

Quartz ceramics are renowned for their phenomenal optical transmission across a large spooky variety, prolonging from the deep ultraviolet (UV) at ~ 180 nm to the near-infrared (IR) at ~ 2500 nm.

This transparency is made it possible for by the lack of pollutants and the homogeneity of the amorphous network, which reduces light scattering and absorption.

High-purity synthetic integrated silica, produced by means of fire hydrolysis of silicon chlorides, accomplishes also higher UV transmission and is used in crucial applications such as excimer laser optics, photolithography lenses, and space-based telescopes.

The product’s high laser damages limit– standing up to malfunction under intense pulsed laser irradiation– makes it excellent for high-energy laser systems utilized in blend study and industrial machining.

In addition, its reduced autofluorescence and radiation resistance make certain dependability in clinical instrumentation, including spectrometers, UV treating systems, and nuclear monitoring devices.

2.2 Dielectric Efficiency and Chemical Inertness

From an electrical perspective, quartz porcelains are impressive insulators with quantity resistivity surpassing 10 ¹⁸ Ω · cm at area temperature and a dielectric constant of roughly 3.8 at 1 MHz.

Their reduced dielectric loss tangent (tan δ < 0.0001) makes sure very little energy dissipation in high-frequency and high-voltage applications, making them suitable for microwave windows, radar domes, and insulating substratums in electronic assemblies.

These residential or commercial properties stay secure over a wide temperature level range, unlike many polymers or standard ceramics that break down electrically under thermal stress.

Chemically, quartz porcelains show amazing inertness to a lot of acids, including hydrochloric, nitric, and sulfuric acids, because of the security of the Si– O bond.

However, they are prone to attack by hydrofluoric acid (HF) and strong alkalis such as hot sodium hydroxide, which damage the Si– O– Si network.

This selective sensitivity is made use of in microfabrication procedures where regulated etching of merged silica is needed.

In hostile industrial atmospheres– such as chemical handling, semiconductor damp benches, and high-purity fluid handling– quartz porcelains function as liners, view glasses, and activator elements where contamination should be decreased.

3. Manufacturing Processes and Geometric Engineering of Quartz Ceramic Elements

3.1 Thawing and Forming Strategies

The manufacturing of quartz ceramics involves several specialized melting techniques, each tailored to certain pureness and application demands.

Electric arc melting utilizes high-purity quartz sand melted in a water-cooled copper crucible under vacuum or inert gas, generating huge boules or tubes with superb thermal and mechanical properties.

Fire blend, or burning synthesis, includes shedding silicon tetrachloride (SiCl ₄) in a hydrogen-oxygen flame, transferring great silica bits that sinter into a clear preform– this method yields the highest possible optical high quality and is used for artificial integrated silica.

Plasma melting supplies an alternate course, providing ultra-high temperatures and contamination-free handling for particular niche aerospace and defense applications.

As soon as melted, quartz ceramics can be shaped with accuracy spreading, centrifugal creating (for tubes), or CNC machining of pre-sintered spaces.

Because of their brittleness, machining needs diamond tools and mindful control to stay clear of microcracking.

3.2 Accuracy Construction and Surface Area Completing

Quartz ceramic elements are frequently produced right into complicated geometries such as crucibles, tubes, poles, windows, and custom-made insulators for semiconductor, photovoltaic or pv, and laser markets.

Dimensional accuracy is vital, specifically in semiconductor manufacturing where quartz susceptors and bell containers should maintain accurate alignment and thermal harmony.

Surface ending up plays a vital role in efficiency; polished surface areas reduce light spreading in optical parts and minimize nucleation websites for devitrification in high-temperature applications.

Engraving with buffered HF remedies can generate regulated surface structures or remove harmed layers after machining.

For ultra-high vacuum cleaner (UHV) systems, quartz ceramics are cleaned and baked to get rid of surface-adsorbed gases, making certain minimal outgassing and compatibility with sensitive procedures like molecular beam epitaxy (MBE).

4. Industrial and Scientific Applications of Quartz Ceramics

4.1 Role in Semiconductor and Photovoltaic Production

Quartz porcelains are fundamental materials in the manufacture of integrated circuits and solar batteries, where they act as heater tubes, wafer boats (susceptors), and diffusion chambers.

Their capacity to hold up against high temperatures in oxidizing, decreasing, or inert atmospheres– incorporated with reduced metal contamination– ensures process pureness and yield.

Throughout chemical vapor deposition (CVD) or thermal oxidation, quartz elements maintain dimensional stability and stand up to bending, avoiding wafer damage and misalignment.

In solar production, quartz crucibles are utilized to grow monocrystalline silicon ingots using the Czochralski process, where their pureness directly influences the electrical high quality of the final solar batteries.

4.2 Usage in Illumination, Aerospace, and Analytical Instrumentation

In high-intensity discharge (HID) lamps and UV sanitation systems, quartz ceramic envelopes include plasma arcs at temperatures surpassing 1000 ° C while transferring UV and visible light effectively.

Their thermal shock resistance prevents failure during fast light ignition and shutdown cycles.

In aerospace, quartz ceramics are used in radar windows, sensing unit real estates, and thermal protection systems as a result of their low dielectric constant, high strength-to-density ratio, and security under aerothermal loading.

In analytical chemistry and life sciences, merged silica blood vessels are necessary in gas chromatography (GC) and capillary electrophoresis (CE), where surface area inertness prevents sample adsorption and makes certain exact separation.

Furthermore, quartz crystal microbalances (QCMs), which rely on the piezoelectric residential or commercial properties of crystalline quartz (distinct from fused silica), use quartz porcelains as safety real estates and insulating assistances in real-time mass sensing applications.

Finally, quartz porcelains stand for a distinct junction of severe thermal durability, optical transparency, and chemical purity.

Their amorphous framework and high SiO two content make it possible for performance in settings where conventional products fall short, from the heart of semiconductor fabs to the side of room.

As modern technology advancements towards higher temperatures, higher precision, and cleaner processes, quartz ceramics will certainly remain to act as a critical enabler of innovation throughout scientific research and market.
