1. Structure and Structural Qualities of Fused Quartz

1.1 Amorphous Network and Thermal Stability

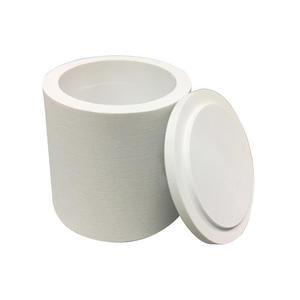

(Quartz Crucibles)

Quartz crucibles are high-temperature containers made from merged silica, an artificial form of silicon dioxide (SiO TWO) stemmed from the melting of all-natural quartz crystals at temperature levels exceeding 1700 ° C.

Unlike crystalline quartz, integrated silica possesses an amorphous three-dimensional network of corner-sharing SiO ₄ tetrahedra, which conveys extraordinary thermal shock resistance and dimensional stability under rapid temperature level changes.

This disordered atomic structure stops bosom along crystallographic planes, making fused silica less prone to splitting during thermal biking contrasted to polycrystalline ceramics.

The material displays a reduced coefficient of thermal expansion (~ 0.5 × 10 ⁻⁶/ K), one of the lowest amongst engineering products, enabling it to stand up to severe thermal slopes without fracturing– an important property in semiconductor and solar battery production.

Fused silica additionally keeps excellent chemical inertness versus a lot of acids, liquified steels, and slags, although it can be slowly engraved by hydrofluoric acid and hot phosphoric acid.

Its high conditioning point (~ 1600– 1730 ° C, relying on pureness and OH web content) permits continual operation at raised temperatures needed for crystal growth and metal refining processes.

1.2 Pureness Grading and Trace Element Control

The performance of quartz crucibles is highly depending on chemical pureness, especially the concentration of metal pollutants such as iron, sodium, potassium, aluminum, and titanium.

Even trace quantities (components per million degree) of these contaminants can migrate right into liquified silicon throughout crystal development, deteriorating the electric properties of the resulting semiconductor product.

High-purity grades used in electronics making generally have over 99.95% SiO TWO, with alkali steel oxides restricted to less than 10 ppm and transition metals below 1 ppm.

Pollutants originate from raw quartz feedstock or processing devices and are reduced via mindful option of mineral resources and purification methods like acid leaching and flotation protection.

In addition, the hydroxyl (OH) material in merged silica affects its thermomechanical actions; high-OH types provide much better UV transmission but reduced thermal stability, while low-OH versions are preferred for high-temperature applications due to decreased bubble development.

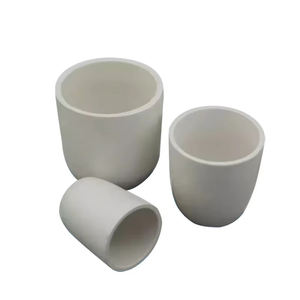

( Quartz Crucibles)

2. Production Process and Microstructural Layout

2.1 Electrofusion and Forming Techniques

Quartz crucibles are mostly generated using electrofusion, a process in which high-purity quartz powder is fed into a turning graphite mold within an electrical arc heating system.

An electric arc produced between carbon electrodes thaws the quartz particles, which solidify layer by layer to develop a seamless, dense crucible shape.

This method creates a fine-grained, uniform microstructure with minimal bubbles and striae, crucial for consistent warmth circulation and mechanical stability.

Alternative techniques such as plasma combination and fire blend are utilized for specialized applications needing ultra-low contamination or particular wall surface density accounts.

After casting, the crucibles undertake regulated cooling (annealing) to eliminate internal tensions and avoid spontaneous splitting during solution.

Surface area finishing, consisting of grinding and polishing, guarantees dimensional precision and decreases nucleation sites for unwanted condensation throughout usage.

2.2 Crystalline Layer Engineering and Opacity Control

A defining attribute of contemporary quartz crucibles, especially those made use of in directional solidification of multicrystalline silicon, is the crafted inner layer structure.

During production, the internal surface is frequently dealt with to advertise the formation of a slim, controlled layer of cristobalite– a high-temperature polymorph of SiO ₂– upon very first home heating.

This cristobalite layer works as a diffusion obstacle, reducing direct communication in between molten silicon and the underlying fused silica, thereby decreasing oxygen and metallic contamination.

Additionally, the existence of this crystalline phase improves opacity, boosting infrared radiation absorption and promoting even more consistent temperature circulation within the melt.

Crucible developers very carefully stabilize the density and connection of this layer to stay clear of spalling or cracking because of volume changes throughout stage changes.

3. Practical Performance in High-Temperature Applications

3.1 Function in Silicon Crystal Development Processes

Quartz crucibles are vital in the production of monocrystalline and multicrystalline silicon, acting as the key container for molten silicon in Czochralski (CZ) and directional solidification systems (DS).

In the CZ procedure, a seed crystal is dipped into molten silicon held in a quartz crucible and gradually pulled upward while revolving, enabling single-crystal ingots to develop.

Although the crucible does not directly speak to the expanding crystal, interactions between liquified silicon and SiO two wall surfaces lead to oxygen dissolution into the melt, which can influence service provider life time and mechanical strength in finished wafers.

In DS procedures for photovoltaic-grade silicon, large-scale quartz crucibles enable the regulated air conditioning of countless kilograms of liquified silicon right into block-shaped ingots.

Right here, coverings such as silicon nitride (Si four N FOUR) are put on the inner surface to avoid bond and facilitate simple launch of the solidified silicon block after cooling down.

3.2 Degradation Devices and Service Life Limitations

Despite their toughness, quartz crucibles break down during repeated high-temperature cycles due to numerous related systems.

Viscous flow or deformation happens at extended exposure above 1400 ° C, causing wall thinning and loss of geometric integrity.

Re-crystallization of merged silica into cristobalite produces inner stress and anxieties as a result of volume development, possibly creating splits or spallation that pollute the melt.

Chemical erosion develops from reduction responses in between molten silicon and SiO TWO: SiO TWO + Si → 2SiO(g), generating unpredictable silicon monoxide that escapes and compromises the crucible wall surface.

Bubble development, driven by entraped gases or OH groups, even more jeopardizes architectural strength and thermal conductivity.

These deterioration paths limit the number of reuse cycles and require specific process control to optimize crucible lifespan and item yield.

4. Emerging Innovations and Technological Adaptations

4.1 Coatings and Compound Alterations

To improve efficiency and sturdiness, progressed quartz crucibles include practical finishings and composite structures.

Silicon-based anti-sticking layers and drugged silica coatings enhance launch qualities and lower oxygen outgassing throughout melting.

Some manufacturers integrate zirconia (ZrO TWO) bits into the crucible wall surface to enhance mechanical stamina and resistance to devitrification.

Research is ongoing into totally clear or gradient-structured crucibles developed to enhance radiant heat transfer in next-generation solar heating system designs.

4.2 Sustainability and Recycling Difficulties

With boosting need from the semiconductor and solar sectors, sustainable use quartz crucibles has actually become a concern.

Used crucibles polluted with silicon deposit are hard to reuse as a result of cross-contamination risks, causing considerable waste generation.

Initiatives focus on creating recyclable crucible liners, enhanced cleaning protocols, and closed-loop recycling systems to recover high-purity silica for additional applications.

As tool performances demand ever-higher product purity, the duty of quartz crucibles will certainly remain to evolve with advancement in products science and procedure design.

In summary, quartz crucibles stand for a vital interface in between raw materials and high-performance digital items.

Their unique mix of pureness, thermal strength, and structural design enables the construction of silicon-based technologies that power contemporary computing and renewable resource systems.
